2SK956 - N-Channel MOSFET Transistor

📥 Download Datasheet

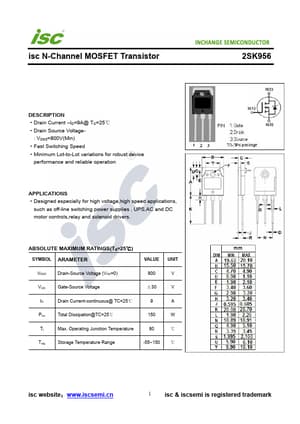

Preview of 2SK956 PDF
datasheet Preview Page 2

Datasheet Details

Part number 2SK956
Manufacturer Inchange Semiconductor
File Size 203.18 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 2SK956-InchangeSemiconductor.pdf

2SK956 Product details

Description

Drain Current ID=9A@ TC=25℃ Drain Source Voltage- : VDSS=800V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed especially for high voltage,high speed applications, such as off-line switching power supplies , UPS,AC and DC motor controls,relay and solenoid drivers.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 800 V VGS Gate-S
