2SK995 N-Channel MOSFET Transistor

2SK995 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 2SK995 .
Drain Current. ID=5A@ TC=25℃. Drain Source Voltage- : VDSS=550V(Min). Fast Switching Speed APPLICATIONS. Designed for high v.

2SK995 Applications

* Designed for high voltage, high speed power switching ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL ARAMETER VALUE NIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) 550 V Gate-Source Voltage ±20 V Drain Current-continuous@ TC=25℃ 5 A Total Dissipation@TC=25℃ 60 W Max. Operating J

📥 Download Datasheet

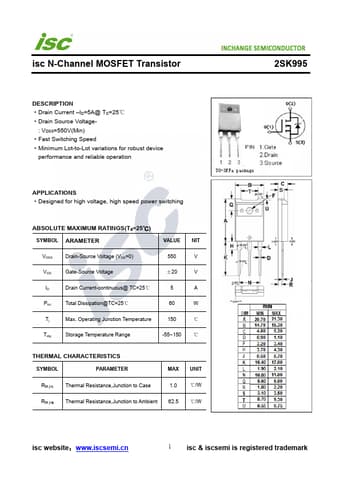

Preview of 2SK995 PDF
datasheet Preview Page 2

Datasheet Details

Part number
2SK995
Manufacturer
Inchange Semiconductor
File Size
196.60 KB
Datasheet
2SK995-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
