53N05 N-Channel MOSFET Transistor

53N05 Description

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification 53N05 *.
Drain Current ID= 53A@ TC=25℃. Drain Source Voltage- : VDSS= 50V(Min). Fast Switching Speed. APPLICATIONS. General purpose power.

53N05 Applications

* General purpose power amplifier ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) VGS Gate-Source Voltage ID Drain Current-continuous@ TC=25℃ 50 ±30 53 V V A ID(puls) Pulse Drain Current 212 A Ptot Total Dissipation@TC=25℃ 150 W Tj Max

📥 Download Datasheet

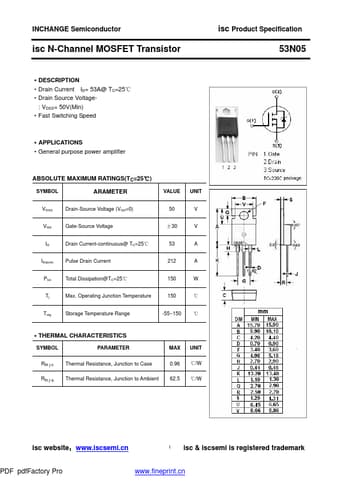

Preview of 53N05 PDF
datasheet Preview Page 2

Datasheet Details

Part number
53N05
Manufacturer
Inchange Semiconductor
File Size
61.55 KB
Datasheet
53N05-InchangeSemiconductor.pdf
Description
N-Channel MOSFET Transistor
