5N60 - N-Channel MOSFET Transistor

The 5N60 by Inchange Semiconductor is a N-Channel MOSFET Transistor. Below is the official datasheet preview.

📥 Download Datasheet

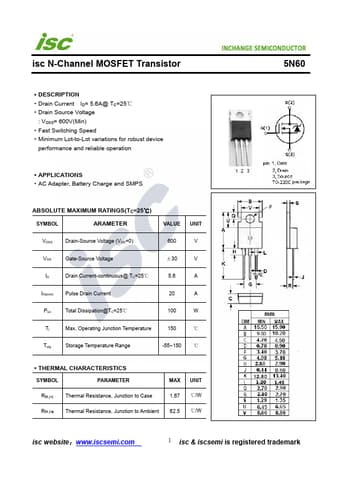

Official preview page of the 5N60 N-Channel MOSFET Transistor datasheet (Inchange Semiconductor).

Datasheet Details

Part number 5N60
Manufacturer Inchange Semiconductor
File Size 234.63 KB
Description N-Channel MOSFET Transistor
Datasheet download datasheet 5N60-InchangeSemiconductor.pdf
Additional preview pages of the 5N60 datasheet.

5N60 Product details

Description

Drain Current ID= 5.6A@ TC=25℃ Drain Source Voltage : VDSS= 600V(Min) Fast Switching Speed Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS AC Adapter, Battery Charge and SMPS ABSOLUTE MAXIMUM RATINGS(TC=25℃) SYMBOL ARAMETER VALUE UNIT VDSS Drain-Source Voltage (VGS=0) 600 V VGS Gate-Source Voltage ±30 V ID Drain Current-continuous@ TC=25℃ 5.6 A ID(puls) Pulse Drain Current 20 A Ptot Total Dissipa
