D103 Datasheet, 2sd103, Inchange Semiconductor

PDF File Details

Part number:

D103

Manufacturer:

Inchange Semiconductor

File Size:

195.51kb

Download:

📄 Datasheet

Description:

2sd103.

  • Collector-Emitter Breakdown Voltage: V(BR)CEO= 50V(Min)
  • High Power Dissipation: PC= 25W(Max)@TC=25℃ Complement to T

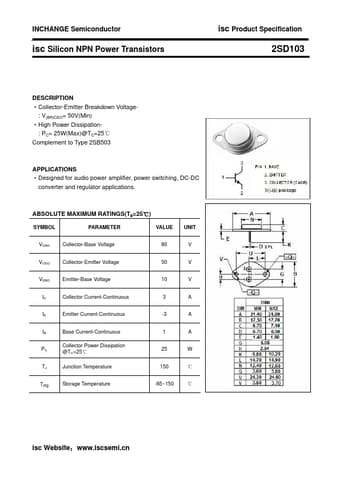

  • Datasheet Preview: D103 📥 Download PDF (195.51kb)
    Page 2 of D103

    D103 Application

    • Applications
    • Designed for audio power amplifier, power switching, DC-DC converter and regulator applications. ABSOLUTE MAXIMUM RATINGS(Ta=
