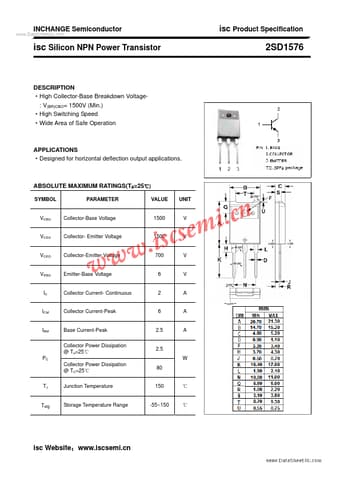

D1576 Datasheet, Transistor, Inchange Semiconductor

PDF File Details

Part number:

D1576

Manufacturer:

Inchange Semiconductor

File Size:

234.33kb

Download:

📄 Datasheet

Description:

Silicon npn power transistor.

High Collector-Base Breakdown Voltage: V(BR)CBO= 1500V (Min.)

High Switching Speed

Wide Area of Safe Opera

D1576 Application

• Applications
• Designed for horizontal deflection output applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO C
