IRF123 - N-Channel MOSFET Transistor

Datasheet Summary

Description

Drain Current ID=7A@ TC=25℃ Drain Source Voltage- : VDSS= 60V(Min) Static Drain-Source On-Resistance : RDS(on) =0.4Ω(Max) Nanosecond Switching Speeds APPLICATIONS Switching power supplies Motor controls,Inverters and Choppers Audio amplifiers and high energy pulse

Inchange Semiconductor

📥 Download Datasheet

Datasheet Details

Part number	IRF123
Manufacturer	Inchange Semiconductor
File Size	42.51 KB
Description	N-Channel MOSFET Transistor
Datasheet	IRF123 Datasheet

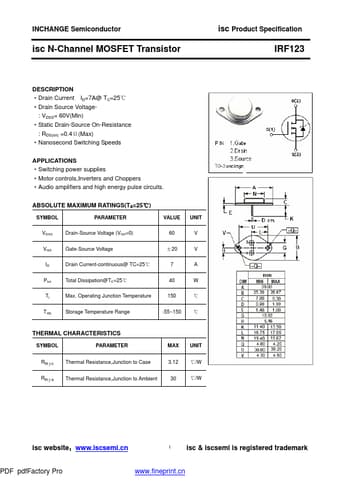

Additional preview pages of the IRF123 datasheet.

📁 Similar Datasheet

IRF123 - N-Channel Power MOSFET (Fairchild Semiconductor)
IRF123 - N-Channel Power MOSFET (Samsung semiconductor)
IRF123 - N-Channel Power MOSFET (Intersil Corporation)
IRF120 - N-CHANNEL POWER MOSFET (Samsung semiconductor)
IRF120 - Power MOSFET (Intersil Corporation)
IRF120 - N-Channel Power MOSFET (Fairchild Semiconductor)
IRF1205 - HEXFET Power MOSFET (International Rectifier)
IRF121 - N-Channel Power MOSFET (Fairchild Semiconductor)
IRF121 - N-Channel Power MOSFET (Samsung semiconductor)
IRF121 - N-Channel Power MOSFET (Intersil Corporation)

Other Datasheets by Inchange Semiconductor

IRF120 - N-Channel MOSFET Transistor
IRF121 - N-Channel MOSFET Transistor
IRF122 - N-Channel MOSFET Transistor
IRF130 - N-Channel MOSFET Transistor
IRF132 - N-Channel MOSFET Transistor
IRF133 - N-Channel MOSFET Transistor
IRF140 - N-Channel MOSFET Transistor
IRF1404 - N-Channel MOSFET Transistor

Full PDF Text Transcription

Click to expand full text

INCHANGE Semiconductor isc N-Channel MOSFET Transistor isc Product Specification IRF123 DESCRIPTION ·Drain Current ID=7A@ TC=25℃ ·Drain Source Voltage- : VDSS= 60V(Min) ·Static Drain-Source On-Resistance : RDS(on) =0.4Ω(Max) ·Nanosecond Switching Speeds APPLICATIONS ·Switching power supplies ·Motor controls,Inverters and Choppers ·Audio amplifiers and high energy pulse circuits. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VDSS VGS ID Ptot Tj Tstg Drain-Source Voltage (VGS=0) Gate-Source Voltage 60 ±20 V V Drain Current-continuous@ TC=25℃ 7 A Total Dissipation@TC=25℃ 40 W Max.

Published: Jul 29, 2016 |
