MBR10200 Schottky Barrier Rectifier

MBR10200 Description

Schottky Barrier Rectifier INCHANGE Semiconductor MBR10200 .

MBR10200 Features

* Metal silicon junction，majority carrier conduction
* Low Power Loss/High Efficiency
* High current capability，low forward voltage drop
* High surge capability
* Guardring for overvoltage protection
* High temperature soldering guaranteed
* RoHS product
* Minimum Lot-to-Lot

MBR10200 Applications

* Designed for low-voltage,high frequency inverters，free wheeling and polarrity protection applications . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VRRM VRWM VR IF(AV) IFRM IFSM IRRM Peak Repetitive Reverse Voltage Working Peak Reverse Voltage DC Blocking Voltage Average

📥 Download Datasheet

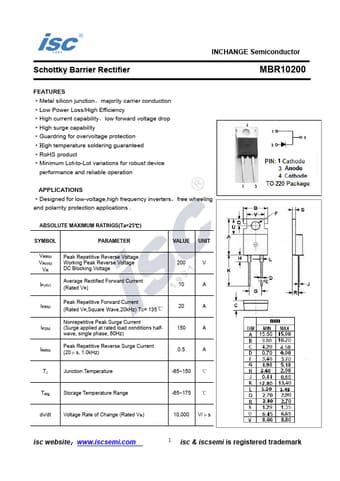

Preview of MBR10200 PDF
datasheet Preview Page 2

Datasheet Details

Part number
MBR10200
Manufacturer
Inchange Semiconductor
File Size
218.95 KB
Datasheet
MBR10200-InchangeSemiconductor.pdf
Description
Schottky Barrier Rectifier
