TA7812 - Three Terminal Positive Voltage Regulator

Datasheet Summary

Features

  • Output current in excess of 1.5A.
  • Output voltage of 12V.
  • Internal thermal overload protection.
  • Output transition Safe-Area compensation.
  • 100% avalanche tested.
  • Minimum Lot-to-Lot variations for robust device performance and reliable operation.

📥 Download Datasheet

Datasheet preview – TA7812

Datasheet Details

Part number TA7812
Manufacturer Inchange Semiconductor
File Size 237.39 KB
Description Three Terminal Positive Voltage Regulator
Datasheet download datasheet TA7812 Datasheet
Additional preview pages of the TA7812 datasheet.

📁 Similar Datasheet

  • TA7812F - Three Terminal Positive Voltage Regulator (Toshiba Semiconductor)
  • TA7812S - (TA78xxS) THREE TERMINAL POSITIVE VOLTAGE REGULATORS (Toshiba Semiconductor)
  • TA7812SB - Three-Terminal Positive Voltage Regulator (Toshiba)
  • TA7810F - Three Terminal Positive Voltage Regulator (Toshiba Semiconductor)
  • TA7810S - (TA78xxS) THREE TERMINAL POSITIVE VOLTAGE REGULATORS (Toshiba Semiconductor)
  • TA7810SB - Three-Terminal Positive Voltage Regulator (Toshiba)
  • TA7815F - Three Terminal Positive Voltage Regulator (Toshiba Semiconductor)
  • TA7815S - (TA78xxS) THREE TERMINAL POSITIVE VOLTAGE REGULATORS (Toshiba Semiconductor)
  • TA7815SB - Three-Terminal Positive Voltage Regulator (Toshiba)
  • TA7818F - Three Terminal Positive Voltage Regulator (Toshiba Semiconductor)
Other Datasheets by Inchange Semiconductor
  • TA7805 - Three Terminal Positive Voltage Regulator

Full PDF Text Transcription

Click to expand full text

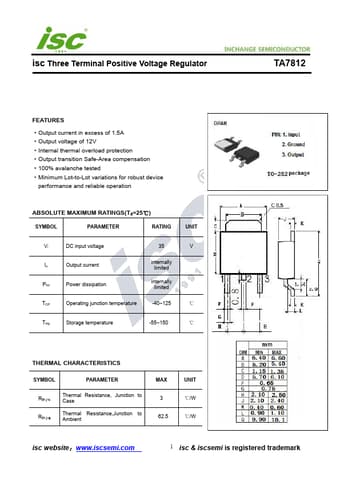

isc Three Terminal Positive Voltage Regulator TA7812 FEATURES ·Output current in excess of 1.5A ·Output voltage of 12V ·Internal thermal overload protection ·Output transition Safe-Area compensation ·100% avalanche tested ·Minimum Lot-to-Lot variations for robust device performance and reliable operation ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER RATING UNIT Vi DC input voltage 35 V Io Output current Ptot Power dissipation internally limited internally limited TOP Operating junction temperature -40~125 ℃ Tstg Storage temperature -55~150 ℃ THERMAL CHARACTERISTICS SYMBOL PARAMETER Rth j-c Rth j-a Thermal Resistance, Junction to Case Thermal Resistance,Junction to Ambient MAX 3 62.5 UNIT ℃/W ℃/W isc website：www.iscsemi.
