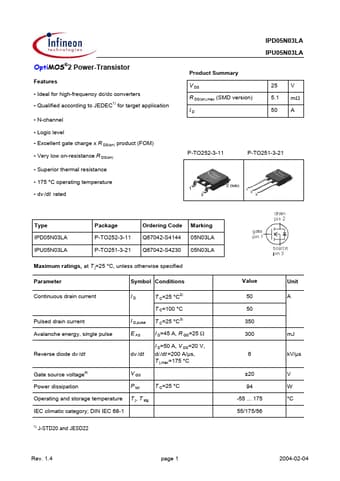

IPU05N03LA
Features
- Ideal for high-frequency dc/dc converters
- Qualified according to JEDEC for target application
- N-channel
- Logic level
- Excellent gate charge x R DS(on) product (FOM)
- Very low on-resistance R DS(on)
- Superior thermal resistance
- 175 °C operating temperature
- dv /dt rated
1)
Product Summary V DS R DS(on),max (SMD version) ID 25 5.1 50 V mΩ A
P-TO252-3-11
P-TO251-3-21
Type IPD05N03LA IPU05N03LA
Package P-TO252-3-11 P-TO251-3-21
Ordering Code Q67042-S4144 Q67042-S4230
Marking 05N03LA 05N03LA
Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current Symbol Conditions ID T C=25 °C2) T C=100 °C Pulsed drain current Avalanche energy, single pulse Reverse diode dv /dt Gate source voltage4) Power dissipation Operating and storage temperature IEC climatic category; DIN IEC 68-1
1)
Value 50 50 350 300 6 ±20
Unit A
I D,pulse E AS dv /dt V GS P tot T j, T stg
T C=25 °C3) I D=45 A, R GS=25 Ω I D=50 A, V DS=20 V, di /dt =200 A/µs, T...
