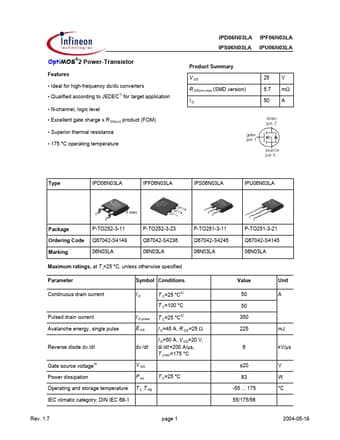

IPU06N03LA
Features
- Ideal for high-frequency dc/dc converters
- Qualified according to JEDEC1) for target application
- N-channel, logic level
- Excellent gate charge x R DS(on) product (FOM)
- Superior thermal resistance
- 175 °C operating temperature
Product Summary V DS R DS(on),max (SMD version) ID 25 5.7 50 V mΩ A
Type
IPD06N03LA
IPF06N03LA
IPS06N03LA
Package Ordering Code Marking
P-TO252-3-11 Q67042-S4149 06N03LA
P-TO252-3-23 Q67042-S4236 06N03LA
P-TO251-3-11 Q67042-S4245 06N03LA
P-TO251-3-21 Q67042-S4145 06N03LA
Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current Symbol Conditions ID T C=25 °C2) T C=100 °C Pulsed drain current Avalanche energy, single pulse Reverse diode d v /dt Gate source voltage4) Power dissipation Operating and storage temperature IEC climatic category; DIN IEC 68-1 I D,pulse E AS dv /dt V GS P tot T j, T stg T C=25 °C T C=25 °C3) I D=45 A, R GS=25 Ω I D=50 A, V DS=20 V, di /dt =200 A/µs, T j,max=175 °C...
