SAB83C515A-5

8-Bit CMOS Single-Chip Microcontroller

SAB83C515A-5 Features

* and operating characteristics the SAB 80C515A/83C515A-5 contains more on-chip RAM/ROM. Furthermore a new 10-bit A/DConverter is implemented as well as extended security mechanisms. The SAB 80C515A is identical with the SAB 83C515A-5 except that it lacks the on-chip program memory. The SAB 80C515A /

SAB83C515A-5 General Description

8-Bit CMOS microcontroller SAB 80C515A-N18 for external memory, 18 MHz SAB 83C515A-5N18 with mask-programmable ROM, 18 MHz SAB 80C515A-N18-T3 Q67120-C0784 P-LCC-68 for external memory, 18 MHz ext. temperature

* 40 to + 85 °C SAB 83C515A-5N18-T3 Q67120-DXXXX P-LCC-68 with mask-programmable RO.

SAB83C515A-5 Datasheet (899.37 KB)

Preview of SAB83C515A-5 PDF

Datasheet Details

Part number:

SAB83C515A-5

Manufacturer:

Infineon ↗ Technologies AG

File Size:

899.37 KB

Description:

8-bit cmos single-chip microcontroller.

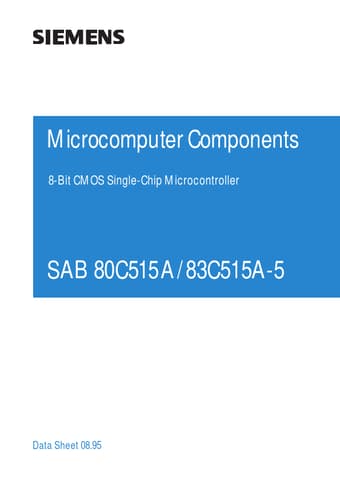

Microcomputer Components 8-Bit CMOS Single-Chip Microcontroller SAB 80C515A/83C515A-5 Data Sheet 08.95 High-Performance 8-Bit CMOS Single-Chip Micr.
