SBH92314G-FSAN

High Power BIDI Optical Standard Module 1310 nm Emitting/ 1550 nm Receiving

SBH92314G-FSAN Features

* Designed for application in passive-optical networks according to FSAN, ITU-T G.983

* Suitable for OLT applications, 155 Mbit/s and 622 Mbit/s downstream bitrate

* Integrated Wavelength Division Multiplexer (WDM)

* Bi-Directional Transmission in 2nd and 3rd optical

SBH92314G-FSAN General Description

Description The Infineon module for bidirectional optical transmission has been designed for different optical networks structures. In the last few years the structure has changed from point to point planned for Broad band ISDN to a point to multipoint passive optical network (PON) architecture for .

SBH92314G-FSAN Datasheet (307.44 KB)

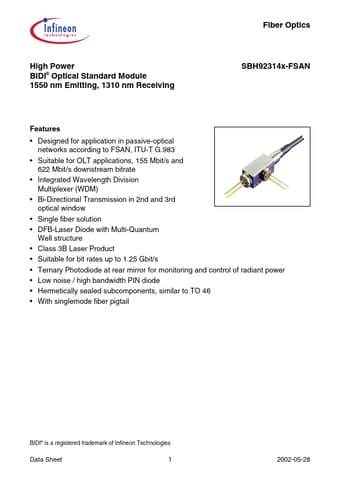

Preview of SBH92314G-FSAN PDF

Datasheet Details

Part number:

SBH92314G-FSAN

Manufacturer:

Infineon ↗ Technologies AG

File Size:

307.44 KB

Description:

High power bidi optical standard module 1310 nm emitting/ 1550 nm receiving.
