TDK5101

ASK/FSK Transmitter 315 MHz

TDK5101 Features

* like a power down mode, a low power detect and a divided clock output are implemented. The IC can be used for both ASK and FSK modulation. s Features fully integrated frequency synthesizer VCO without external components high efficiency power amplifier frequency range 311 317 MHz ASK/FSK modulati

TDK5101 General Description

The TDK 5101 is a single chip ASK/ Package FSK transmitter for the frequency band 311-317 MHz. The IC offers a high level of integration and needs only a few external components. The device contains a fully integrated PLL synthesizer and a high efficiency power amplifier to drive a loop antenna. A s.

TDK5101 Datasheet (584.84 KB)

Preview of TDK5101 PDF

Datasheet Details

Part number:

TDK5101

Manufacturer:

Infineon ↗ Technologies AG

File Size:

584.84 KB

Description:

Ask/fsk transmitter 315 mhz.

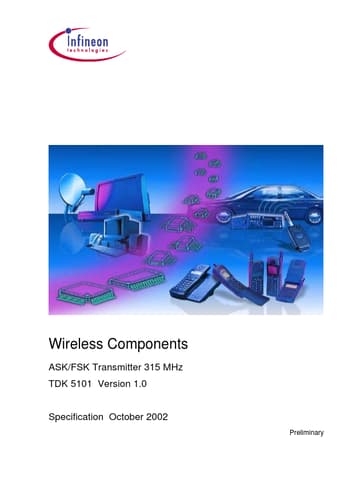

Wireless Components ASK/FSK Transmitter 315 MHz TDK 5101 Version 1.0 Specification October 2002 Preliminary Revision History Current Version: Versio.
