TLE4250G - Low-Drop Voltage Tracker

TLE4250G Description

Low Drop Voltage Tracker TLE 4250 G .
The TLE 4250 G is a monolithic integrated low drop voltage tracker in the very small SMD package P-SCT595-5.

TLE4250G Features

* Output tracking tolerance ≤ ±0.5%
* 50 mA output current
* Combined Tracking/Enable input
* Very low current consumption in off mode
* Low drop voltage
* Suitable for use in automotive electronics
* Wide operation range: up to 40 V

TLE4250G Applications

* Therefore the device is equipped with additional protection functions against overload, short circuit and reverse polarity. Supply voltages up to 40 V are tracked to a reference voltage at the adjust input. Therefore the Adjust pin has to be connected to a reference voltage, e. g. to a 5 V supply on

📥 Download Datasheet

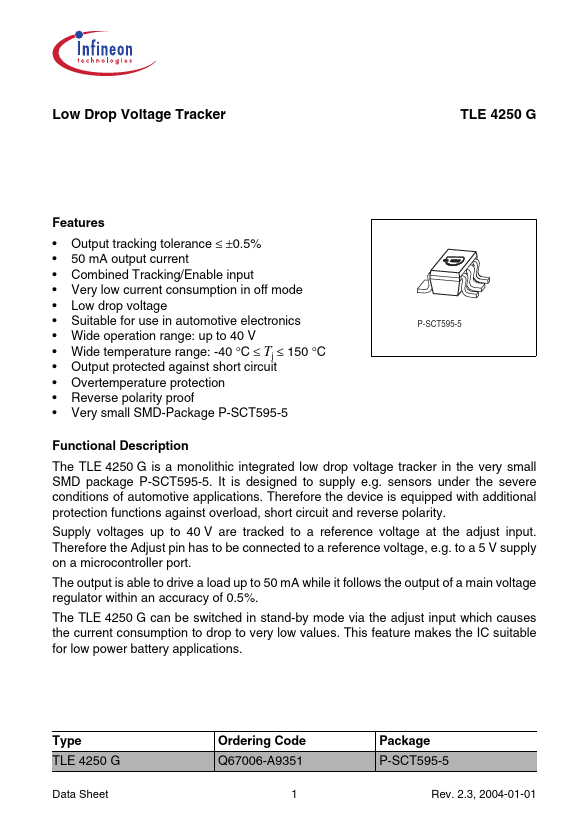

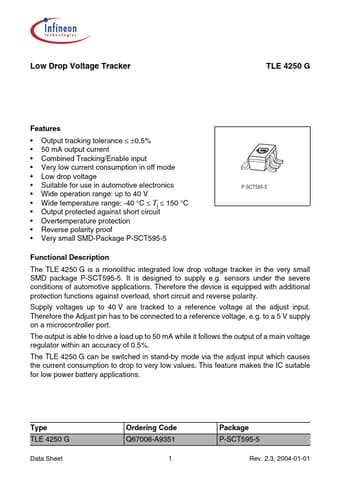

Preview of TLE4250G PDF

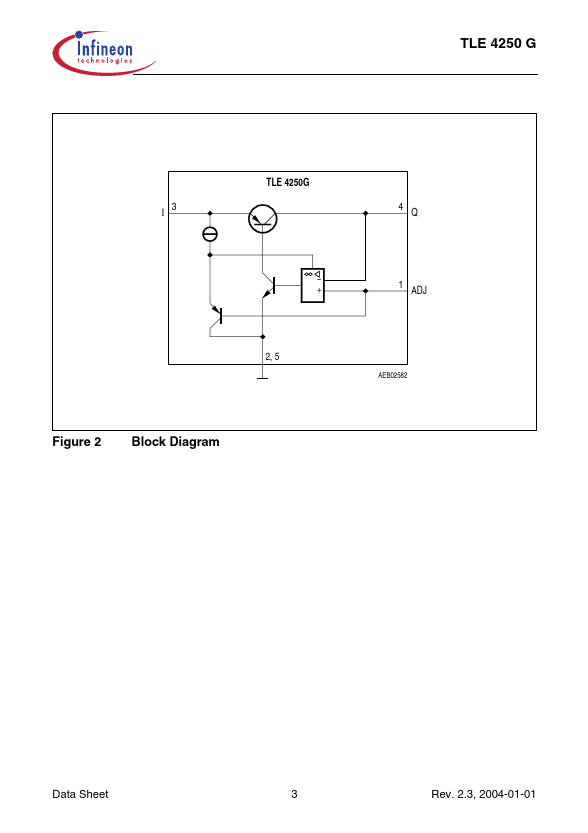

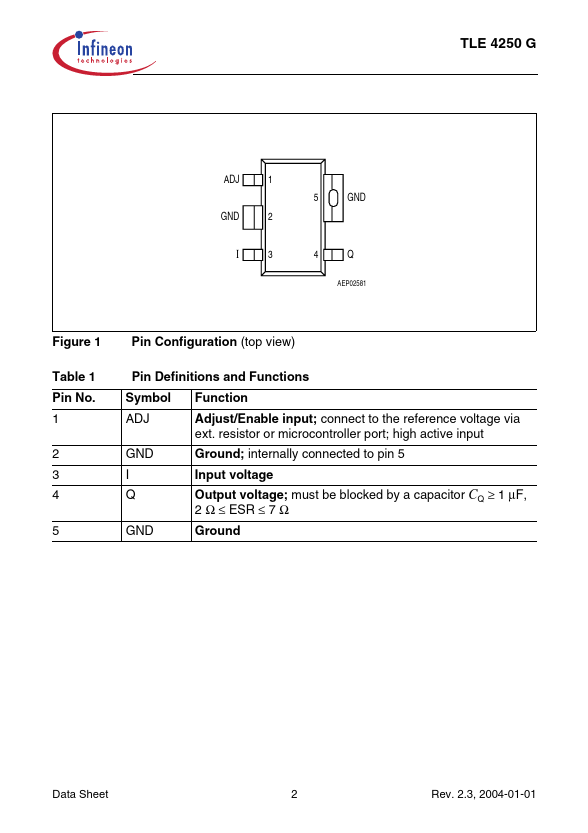

datasheet Preview Page 2 datasheet Preview Page 3
