TLE5205-2 Datasheet - Infineon Technologies AG

TLE5205-2 5-A H-Bridge

PG-TO220-7-12 The TLE 5205-2 is an integrated power H-bridge with DMOS output stages for driving DC-Motors. The part is built using the Infineon multi-technology process SPT® which allows bipolar and CMOS control circuitry plus DMOS power devices to exist on the same monolithic structure. Operatio.

TLE5205-2 Features

* Delivers up to 5 A continuous 6 A peak current

* Optimized for DC motor management applications

* Operates at supply voltages up to 40 V

* Very low RDS ON; typ. 200 mΩ @ 25 °C per switch

* Output full short circuit protected

* Overtemperature protect

TLE5205-2_InfineonTechnologiesAG.pdf

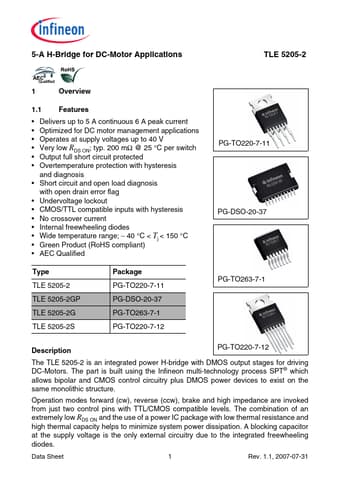

Preview of TLE5205-2 PDF
TLE5205-2 Datasheet Preview Page 2 TLE5205-2 Datasheet Preview Page 3

Datasheet Details

Part number:

TLE5205-2

Manufacturer:

Infineon ↗ Technologies AG

File Size:

336.21 KB

Description:

5-a h-bridge.
