TLE6230GP Datasheet - Infineon Technologies AG

Smart Octal Low-Side Switch

TLE6230GP Features

* Product Summary

* Short Circuit Protection

* Overtemperature Protection

* Overvoltage Protection Drain source clamping voltage VDS(AZ)max On resistance RON Output current(all outp.ON equal) ID(NOM) (individually) 55 0.75 500 1 V Ω mA A

* 16 bit Serial Data Inp

TLE6230GP General Description

Octal Low-Side Switch in Smart Power Technology (SPT) with a Serial Peripheral Interface (SPI) and eight open drain DMOS output stages. The TLE 6230 GP is protected by embedded protection functions and designed for automotive and industrial applications. The output stages are controlled via an SPI I.

TLE6230GP Datasheet (277.15 KB)

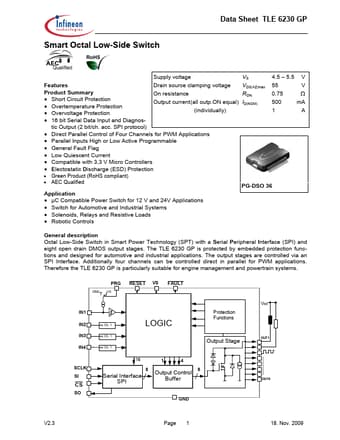

TLE6230GP Datasheet Preview — Preview of TLE6230GP PDF

Datasheet Details

Part number:

TLE6230GP

Manufacturer:

Infineon ↗ Technologies AG

File Size:

277.15 KB

Description:

Smart octal low-side switch.
