2QR2280Z

ICE2QR2280Z

Infineon Technologies

2QR2280Z Features

* 800V avalanche rugged CoolMOS® with built-in startup cell

* Quasi resonant operation till very low load

* Active burst mode operation for low standby input power (< 0.1W)

* Digital frequency reduction with decreasing load for reduced switching loss

* Built-i

2QR2280Z General Description

The CoolSET®-Q1 series (ICE2QRxx80Z) is the first generation of quasi-resonant integrated power ICs. It is optimized for off-line switch mode power supply applications such as LCD monitor, DVD R/W, DVD Combo, Blue-ray DVD, set top box, etc. Operating the MOSFET switch in quasi-resonant mode, lower E.

2QR2280Z Datasheet (1.16 MB)

2QR2280Z Datasheet Preview — Preview of 2QR2280Z PDF

Datasheet Details

Part number:

2QR2280Z

Manufacturer:

Infineon ↗ Technologies

File Size:

1.16 MB

Description:

Ice2qr2280z.

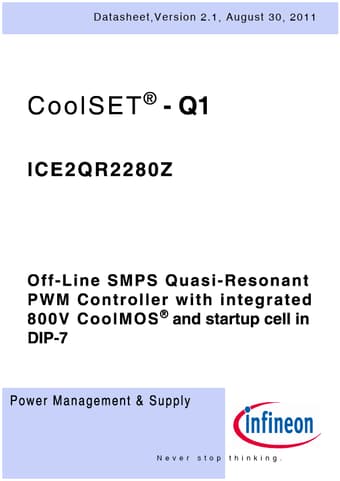

Datasheet,Version 2.1, August 30, 2011 ® Never stop thinking. CoolSET® - Q1 ICE2QR2280Z Revision History: August 30, 2011 Previous Version: Page .
