HDSP2002LP 4 Character 5x7 Dot Matrix Series Input ALphanumeric Display

The HDSP200XLP are four digit 5 x 7 dot matrix serial input alphanumeric displays. The displays are available in red, yellow, high efﬁciency red, or bright green. The package is a standard twelve-pin DIP with a ﬂat plastic lens. The display can be stacked horizontally or vertically to form messages .

HDSP2002LP Features

* Four 0.150" Dot Matrix Characters

* Four Colors: Red, Yellow, High Efﬁciency Red, Green

* Wide Viewing Angle: X Axis +50°, Y Axis +75°

* Built-in CMOS Shift Registers with Constant Current LED Row Drivers

* Custom Fonts from Shift Registers

* Easily

HDSP2002LP Datasheet (424.74 KB)

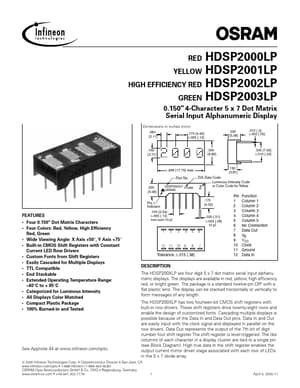

HDSP2002LP Datasheet Preview — Preview of HDSP2002LP PDF

Datasheet Details

Part number:

HDSP2002LP

Manufacturer:

Infineon ↗ Technologies

File Size:

424.74 KB

Description:

4 character 5x7 dot matrix series input alphanumeric display.
