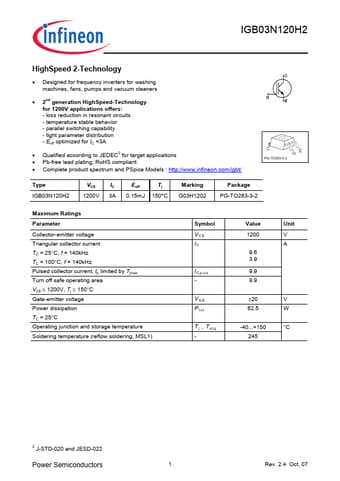

IGB03N120H2
HighSpeed 2-Technology
• Designed for frequency inverters for washing machines, fans, pumps and vacuum cleaners
• 2nd generation HighSpeed-Technology for 1200V applications offers: - loss reduction in resonant circuits - temperature stable behavior - parallel switching capability - tight parameter distribution - Eoff optimized for IC =3A
• Qualified according to JEDEC2 for target applications • Pb-free lead plating; RoHS compliant • Complete product spectrum and PSpice Models : http://www.infineon.com/igbt/
C G
E
PG-TO263-3-2
Type IGB03N120H2
VCE
IC
1200V 3A
Eoff
Tj
0.
