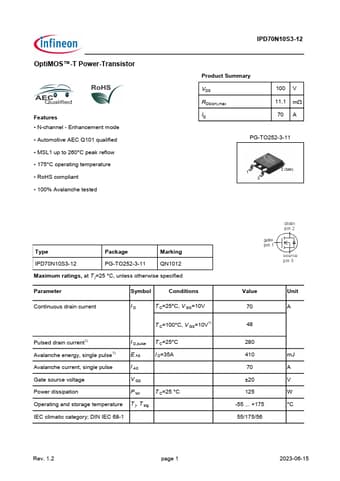

IPD70N10S3-12 - Power Transistor

Infineon Technologies

Datasheet Details

Part number	IPD70N10S3-12
Manufacturer	Infineon ↗ Technologies
File Size	890.64 KB
Description	Power Transistor
Datasheet	IPD70N10S3-12-InfineonTechnologies.pdf

N-channel - Enhancement mode.
Automotive AEC Q101 qualified.
MSL1 up to 260°C peak reflow.
175°C operating temperature.
RoHS compliant.
100% Avalanche tested IPD70N10S3-12 Product Summary VDS RDS(on),max ID 100 V 11.1 mW 70 A PG-TO252-3-11 Type Package Marking IPD70N10S3-12 PG-TO252-3-11 QN1012 Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Symbol Conditions Continuous drain current ID T C=25°C, V GS=10V.
