IPSH6N03LB Datasheet - Infineon Technologies

IPSH6N03LB OptiMOS2 Power-Transistor

Type IPUH6N03LB IPSH6N03LB OptiMOS®2 Power-Transistor Package Marking Qualified according to JEDEC1) for target applications N-channel - Logic level Excellent gate charge x R DS(on) product (FOM) Superior thermal resistance 175 °C operating temperature Pb-free lead plating; RoHS compliant Product Summary V DS R DS(on),max ID 30 6.3 50 V mΩ A Type IPUH6N03LB IPSH6N03LB Package Marking PG-TO251-3 H6N03LB PG-TO251-3-11 H6N03LB M.

IPSH6N03LB_InfineonTechnologies.pdf

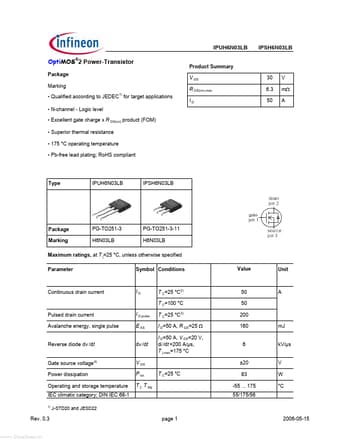

Preview of IPSH6N03LB PDF
IPSH6N03LB Datasheet Preview Page 2 IPSH6N03LB Datasheet Preview Page 3

Datasheet Details

Part number:

IPSH6N03LB

Manufacturer:

Infineon ↗ Technologies

File Size:

334.60 KB

Description:

Optimos2 power-transistor.
