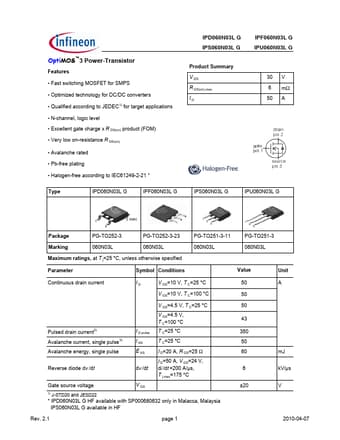

IPU060N03LG
Features
- Fast switching MOSFET for SMPS
- Optimized technology for DC/DC converters
- Qualified according to JEDEC1) for target applications
- N-channel, logic level
- Excellent gate charge x R DS(on) product (FOM)
- Very low on-resistance R DS(on)
- Avalanche rated
- Pb-free plating
- Halogen-free according to IEC61249-2-21
- IPD060N03L G IPS060N03L G
IPF060N03L G IPU060N03L G
Product Summary V DS R DS(on),max ID
30 V 6 mΩ 50 A
Type
IPD060N03L G
- Avalanche rated
- Pb-free plating; Ro HS pliant
IPF060N03L G
IPS060N03L G
IPU060N03L G
Package
PG-TO252-3
PG-TO252-3-23
PG-TO251-3-11
PG-TO251-3
Marking
060N03L
060N03L
Maximum ratings, at T j=25 °C, unless otherwise specified
Parameter
Symbol Conditions
060N03L
060N03L
Value
Unit
Continuous drain current
I D V GS=10 V, T C=25 °C
V GS=10 V, T C=100 °C
V GS=4.5 V, T C=25...
