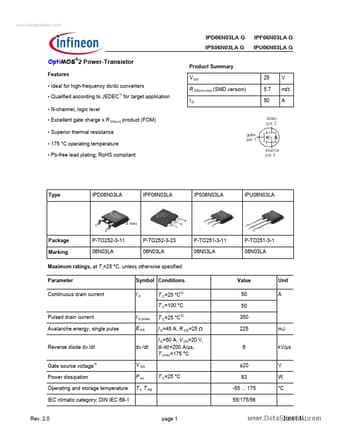

IPU06N03LAG
Features
- Ideal for high-frequency dc/dc converters
- Qualified according to JEDEC1) for target application
- N-channel, logic level
- Excellent gate charge x R DS(on) product (FOM)
- Superior thermal resistance
- 175 °C operating temperature
- Pb-free lead plating; Ro HS pliant
Product Summary V DS R DS(on),max (SMD version) ID 25 5.7 50 V mΩ A
Type
IPD06N03LA
IPF06N03LA
IPS06N03LA
IPU06N03LA
Package Marking
P-TO252-3-11 06N03LA
P-TO252-3-23 06N03LA
P-TO251-3-11 06N03LA
P-TO251-3-1 06N03LA
Maximum ratings, at T j=25 °C, unless otherwise specified Parameter Continuous drain current Symbol Conditions ID T C=25 °C2) T C=100 °C Pulsed drain current Avalanche energy, single pulse Reverse diode d v /dt Gate source voltage4) Power dissipation Operating and storage temperature IEC climatic category; DIN IEC 68-1 I D,pulse E AS dv /dt V GS P tot T j, T stg T C=25 °C T C=25 °C3) I D=45 A, R GS=25 Ω I D=50 A, V DS=20 V, di /dt =200 A/µs, T j,max=175 °C Value 50 50 350 225 6 ±20 83...
