K07N120 Datasheet - Infineon Technologies

K07N120 Fast IGBT in NPT-technology

SKW07N120 www.DataSheet4U.com Fast IGBT in NPT-technology with soft, fast recovery anti-parallel EmCon diode Lower Eoff compared to previous generation Short circuit withstand time 10 µs Designed for: - Motor controls - Inverter - SMPS NPT-Technology offers: - very tight parameter distribution - high ruggedness, temperature stable behaviour - parallel switching capability 1 Qualified according to JEDEC for target applications .

K07N120_InfineonTechnologies.pdf

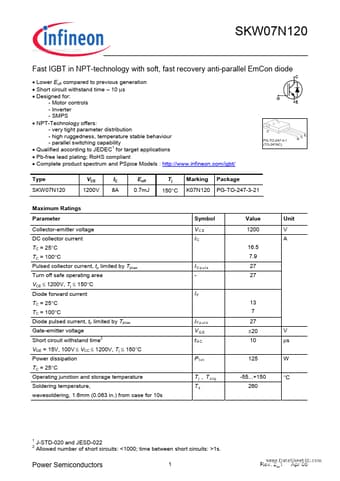

Preview of K07N120 PDF
K07N120 Datasheet Preview Page 2 K07N120 Datasheet Preview Page 3

Datasheet Details

Part number:

K07N120

Manufacturer:

Infineon ↗ Technologies

File Size:

877.14 KB

Description:

Fast igbt in npt-technology.
