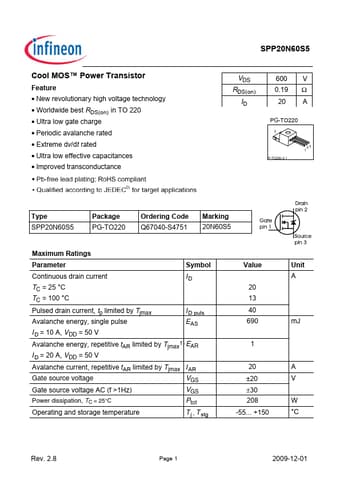

SPP20N60S5
Feature
- New revolutionary high voltage technology
- Worldwide best RDS(on) in TO 220
- Ultra low gate charge
- Periodic avalanche rated
- Extreme dv/dt rated
- Ultra low effective capacitances
- Improved transconductance
VDS RDS(on)
600 0.19 20
V Ω A
PG-TO220
P-TO220-3-1
Type SPP20N60S5
Package PG-TO220
Ordering Code Q67040-S4751
Marking 20N60S5
Maximum Ratings
Parameter
Symbol
Continuous drain current
TC = 25 °C TC = 100 °C
Pulsed drain current, tp limited by Tjmax
ID puls
Avalanche energy, single pulse
ID = 10 A, VDD = 50 V
Avalanche energy, repetitive t AR limited by Tjmax1) EAR ID = 20 A, VDD = 50 V
Avalanche current, repetitive t AR limited by Tjmax IAR
Gate source voltage
Gate source voltage AC (f >1Hz)
Power dissipation, TC = 25°C
Operating and storage temperature
Ptot Tj ,...
