TDA16832

Off-Line SMPS Controller

TDA16832 Features

* PWM controller + sense CoolMOS attached in one compact package

* 600 V avalanche rugged CoolMOS

* Typical RDSon = 0.5 3.5 Ω at Tj = 25 °C

* Only 4 active Pins

* Standard DIP-8 Package for Output Power ≤40 W

* Only few external components required

TDA16832 General Description

The TDA 16831-4 is a current mode pulse width modulator with integrated sense CoolMOS transistor. It fulfills the requirements of minimum external control circuitry for a flyback application. Current mode control means that the current through the MOS transistor is compared with a reference signal d.

TDA16832 Datasheet (317.08 KB)

Preview of TDA16832 PDF

Datasheet Details

Part number:

TDA16832

Manufacturer:

Infineon ↗ Technologies

File Size:

317.08 KB

Description:

Off-line smps controller.

📁 Related Datasheet

TDA16831 - Off-Line SMPS Controller (Infineon)

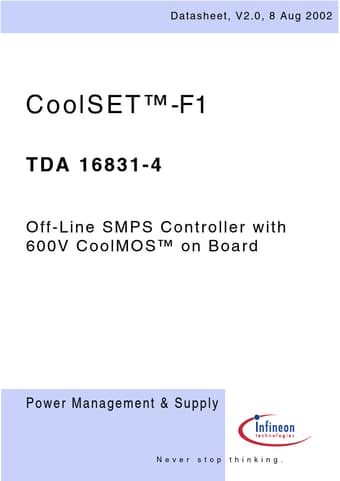

Datasheet, V2.0, 8 Aug 2002 C o o l S E T ™ -F1 TDA 16831-4 Off-Line SMPS Controller with 600V CoolMOS™ on Board Power Management & Supply Never stop .
