04N80C3 Power Transistor

04N80C3 Description

CoolMOSTM Power Transistor .

04N80C3 Features

* New revolutionary high voltage technology
* Extreme dv/dt rated
* High peak current capability

04N80C3 Applications

* Pb-free lead plating; RoHS compliant
* Ultra low gate charge
* Ultra low effective capacitances Product Summary V DS R DS(on)max @ Tj = 25°C Q g,typ SPP04N80C3 800 V 1.3 Ω 23 nC PG-TO220-3 CoolMOSTM 800V designed for:
* Industrial application with high DC bulk v

📥 Download Datasheet

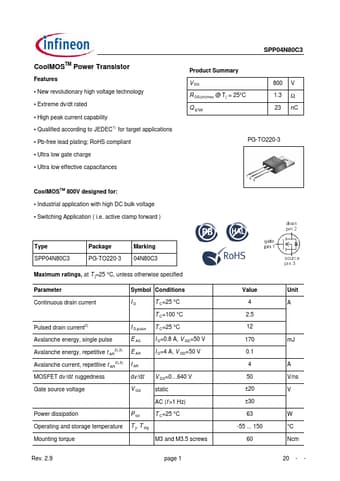

Preview of 04N80C3 PDF
datasheet Preview Page 2 datasheet Preview Page 3
