1EDC20I12MH, 1EDC10I12MH Datasheet - Infineon

1EDC20I12MH Single channel IGBT gate driver

Description The 1EDCxxI12MH are galvanically isolated single channel IGBT driver in a PG-DSO-8-59 package that provide output currents up to 3 A and an integrated active Miller clamp circuit with the same current rating to protect against parasitic turn on. The input logic pins operate on a wide inp.

1EDC20I12MH Features

* Single channel isolated gate driver

* For 600 V/650 V/1200 V IGBTs, MOSFETs, and SiC MOSFETs

* Up to 6 A typical peak current at rail-to-rail output

* Active Miller clamp

* Galvanically isolated coreless transformer driver

* Wide input voltage operat

1EDC10I12MH-Infineon.pdf

This datasheet PDF includes multiple part numbers: 1EDC20I12MH, 1EDC10I12MH. Please refer to the document for exact specifications by model.

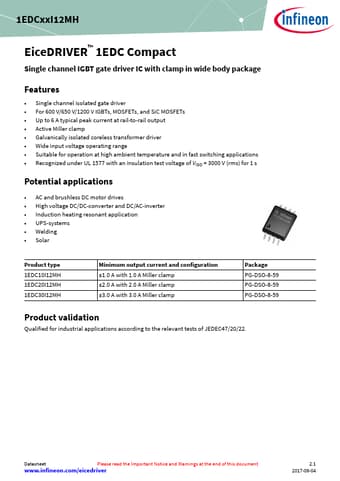

1EDC20I12MH Datasheet Preview Page 2 1EDC20I12MH Datasheet Preview Page 3

Datasheet Details

Part number:

1EDC20I12MH, 1EDC10I12MH

Manufacturer:

Infineon ↗

File Size:

503.60 KB

Description:

Single channel igbt gate driver.

Note:

This datasheet PDF includes multiple part numbers: 1EDC20I12MH, 1EDC10I12MH.
Please refer to the document for exact specifications by model.
