1EDN7512B, 1EDN7511B Datasheet - Infineon

1EDN7512B, 1EDN7511B, Single-channel low-side gate driver

EiceDRIVER™ 1EDN751x/1EDN851x Single-channel low-side gate driver IC with 4 A source/8 A sink output stage .
The EiceDRIVER™ gate-driver IC family is offered in SOT23-5 and SOT23-6 with 5 pins and 6 pins respectively, as well as WSON-6 packages.

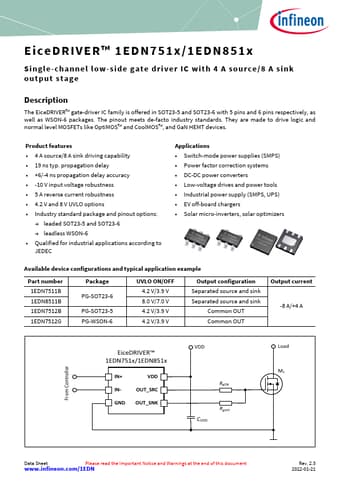

datasheet Preview Page 1 from Datasheet4u.com

1EDN7511B-Infineon.pdf

1EDN7512B Datasheet Preview — This datasheet PDF includes multiple part numbers: 1EDN7512B, 1EDN7511B. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

1EDN7512B, 1EDN7511B

Manufacturer:

Infineon ↗

File Size:

945.84 KB

Description:

Single-channel low-side gate driver

Note:

This datasheet PDF includes multiple part numbers: 1EDN7512B, 1EDN7511B.
Please refer to the document for exact specifications by model.

Features

* 4 A source/8 A sink driving capability
* 19 ns typ. propagation delay
* +6/-4 ns propagation delay accuracy
* -10 V input voltage robustness
* 5 A reverse current robustness
* 4.2 V and 8 V UVLO options
* Industry standard package and pinout

Applications

* according to JEDEC Applications
* Switch-mode power supplies (SMPS)
* Power factor correction systems
* DC-DC power converters
* Low-voltage drives and power tools
* Industrial power supply (SMPS, UPS)
* EV off-board chargers
* Solar micro-inv

1EDN7512B Distributors
