4DIR0401H, 4DIR0400H - Robust Digital Isolators

Infineon

4DIR0401H Datasheet Preview — This datasheet PDF includes multiple part numbers: 4DIR0401H, 4DIR0400H. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	4DIR0401H, 4DIR0400H
Manufacturer	Infineon ↗
File Size	1.18 MB
Description	Robust Digital Isolators
Datasheet	4DIR0400H-Infineon.pdf
Note	This datasheet PDF includes multiple part numbers: 4DIR0401H, 4DIR0400H. Please refer to the document for exact specifications by model.

4DIR0401H Product details

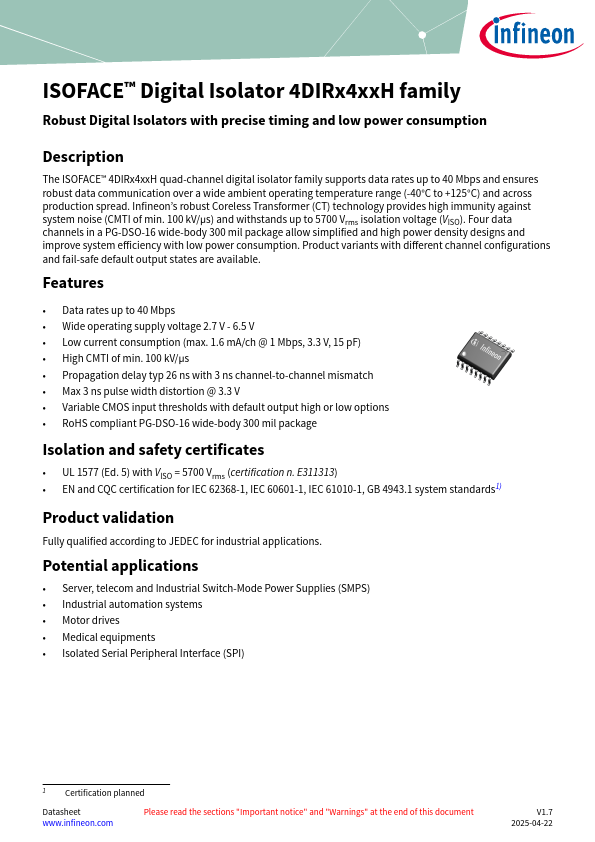

Description

The ISOFACE™ 4DIRx4xxH quad-channel digital isolator family supports data rates up to 40 Mbps and ensures robust data communication over a wide ambient operating temperature range (-40°C to +125°C) and across production spread.

Features

Data rates up to 40 Mbps.
Wide operating supply voltage 2.7 V - 6.5 V.
Low current consumption (max. 1.6 mA/ch @ 1 Mbps, 3.3 V, 15 pF).
High CMTI of min. 100 kV/µs.
Propagation delay typ 26 ns with 3 ns channel-to-channel mismatch.
Max 3 ns pulse width distortion @ 3.3 V.
Variable CMOS input thresholds with default output high or low options.
RoHS compliant PG-DSO-16 wide-body 300 mil package Isolation and safety certificat.
