AIKYX200N75CP2 - Duo Pack EDT2 IGBT and emitter controlled diode

Infineon

📥 Download Datasheet

AIKYX200N75CP2 Datasheet Preview — Preview of AIKYX200N75CP2 PDF

Datasheet Details

Part number	AIKYX200N75CP2
Manufacturer	Infineon
File Size	1.53 MB
Description	Duo Pack EDT2 IGBT and emitter controlled diode
Datasheet	AIKYX200N75CP2-Infineon.pdf

AIKYX200N75CP2 Product details

Description

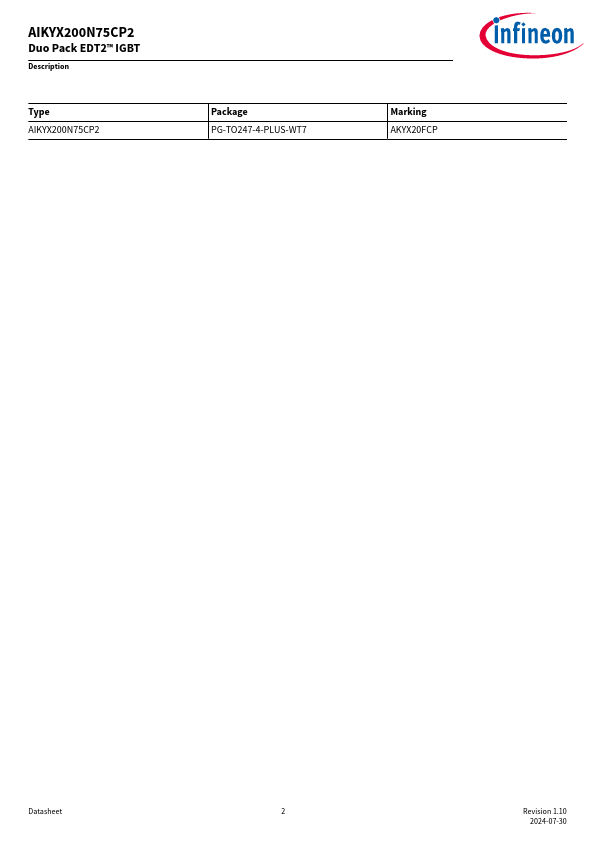

Package pin definition: Pin C (1) & backside - collector Pin E (2) - emitter Pin K (3) - Kelvin emitter Pin G (4) - gate EDT2_TO247PLUS__TO247-4-13/ PG-TO247-4-PLUS-WT7 2021-10-27 restricted Copyright © Infineon Technologies AG 2021. All rights reserved.Datasheet www.infineon.com Please read the sections "Important notice" and "Warnings" at the end of this document Revision 1.10 2024-07-30 AIKYX200N75CP2 Duo Pack EDT2™ IGBT Description Type AIKYX2

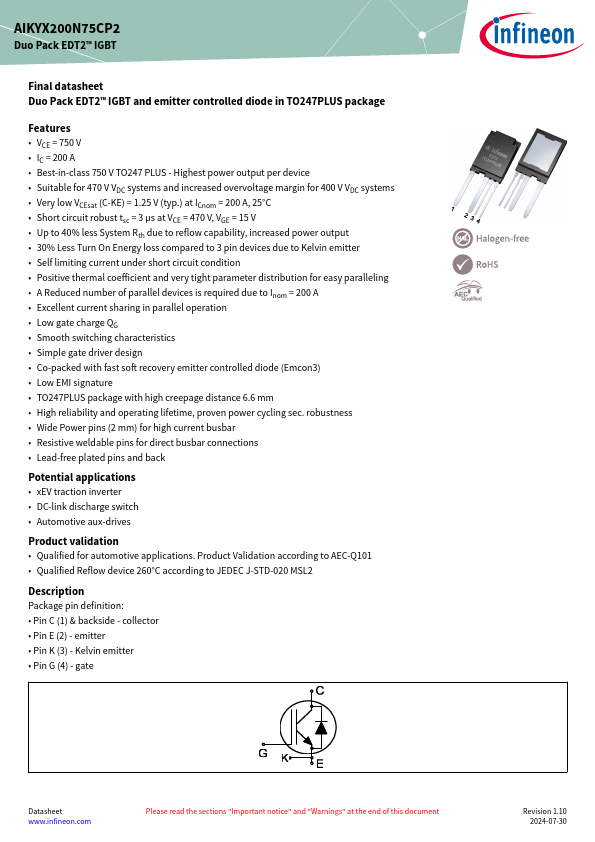

Features

VCE = 750 V.
IC = 200 A.
Best-in-class 750 V TO247 PLUS - Highest power output per device.
Suitable for 470 V VDC systems and increased overvoltage margin for 400 V VDC systems.
Very low VCEsat (C-KE) = 1.25 V (typ. ) at ICnom = 200 A, 25°C.
Short circuit robust tsc = 3 µs at VCE = 470 V, VGE = 15 V.
Up to 40% less System Rth due to reflow capability, increased power output.
30% Less Turn On Energy loss compared to 3 pin dev.
