AIMDQ75R016M1H MOSFET

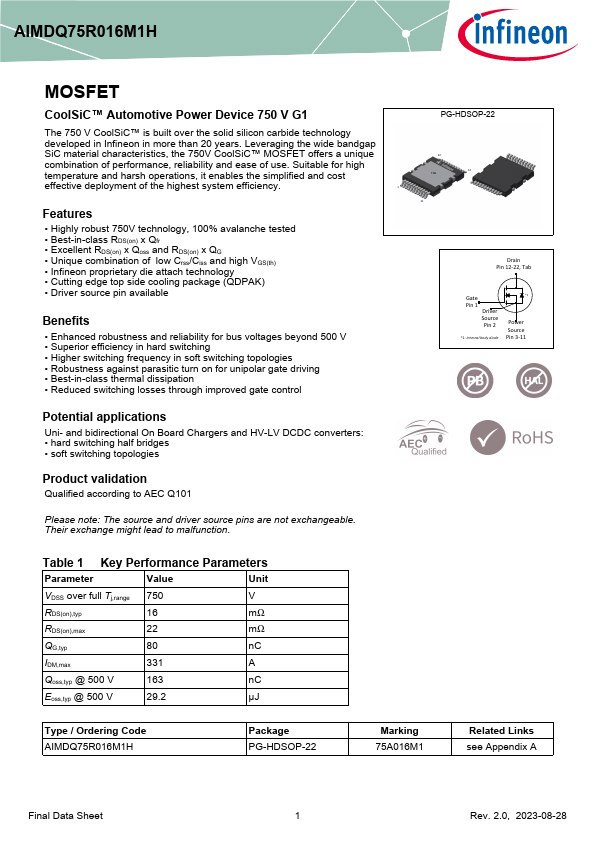

📥 Download Datasheet Datasheet Preview Page 1

Description

AIMDQ75R016M1H MOSFET CoolSiCª Automotive Power Device 750 V G1 PG-HDSOP-22 The 750 V CoolSiC™ is built over the solid silicon carbide technology .

📥 Download Datasheet

Preview of AIMDQ75R016M1H PDF

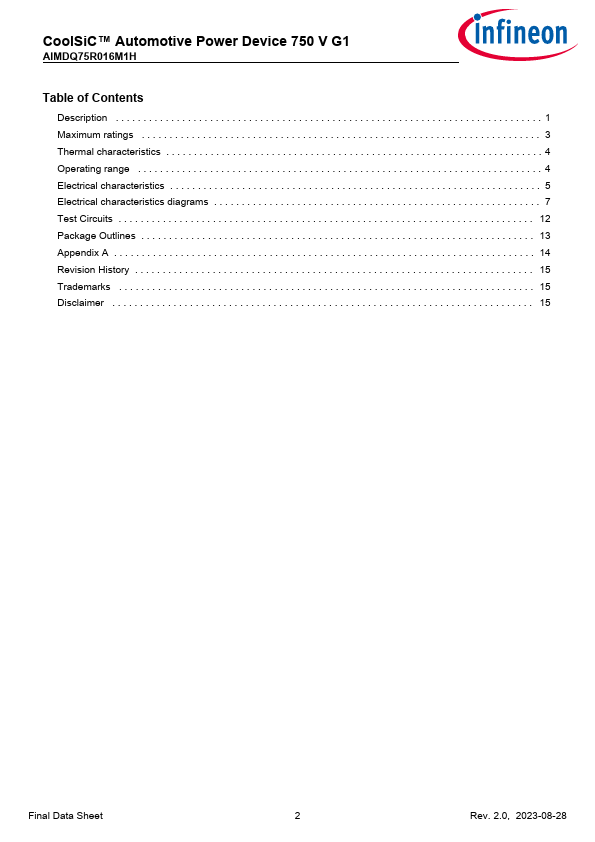

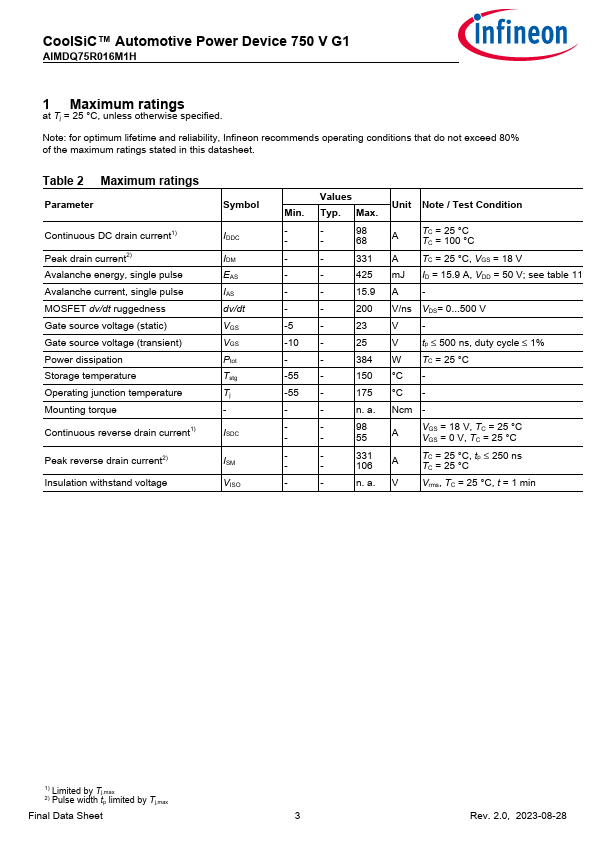

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Highly robust 750V technology, 100% avalanche tested
* Best-in-class RDS(on) x Qfr
* Excellent RDS(on) x Qoss and RDS(on) x QG
* Unique combination of low Crss/Ciss and high VGS(th)
* Infineon proprietary die attach technology
* Cutting edge top sid

Applications

* Uni- and bidirectional On Board Chargers and HV-LV DCDC converters:
* hard switching half bridges
* soft switching topologies Product validation Qualified according to AEC Q101 Please note: The source and driver source pins are not exchangeable. Their exchange might lead to malfunct
