BCP56-16, BCP54 Datasheet - Infineon

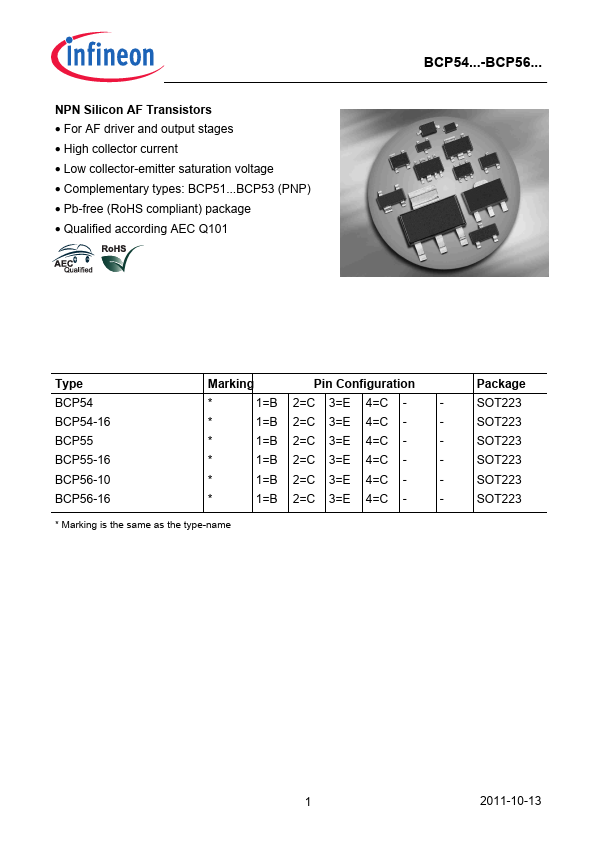

BCP56-16 NPN Silicon AF Transistors

NPN Silicon AF Transistors For AF driver and output stages High collector current Low collector-emitter saturation voltage Complementary types: BCP51BCP53 (PNP) Pb-free (RoHS compliant) package Qualified according AEC Q101 BCP54-BCP56 Type BCP54 BCP54-16 BCP55 BCP55-16 BCP56-10 BCP56-16 Marking Pin Configuration 1=B 2=C 3=E 4=C - - 1=B 2=C 3=E 4=C - - 1=B 2=C 3=E 4=C - - 1=B 2=C 3=E 4=C - - .

BCP54-Infineon.pdf

This datasheet PDF includes multiple part numbers: BCP56-16, BCP54. Please refer to the document for exact specifications by model.

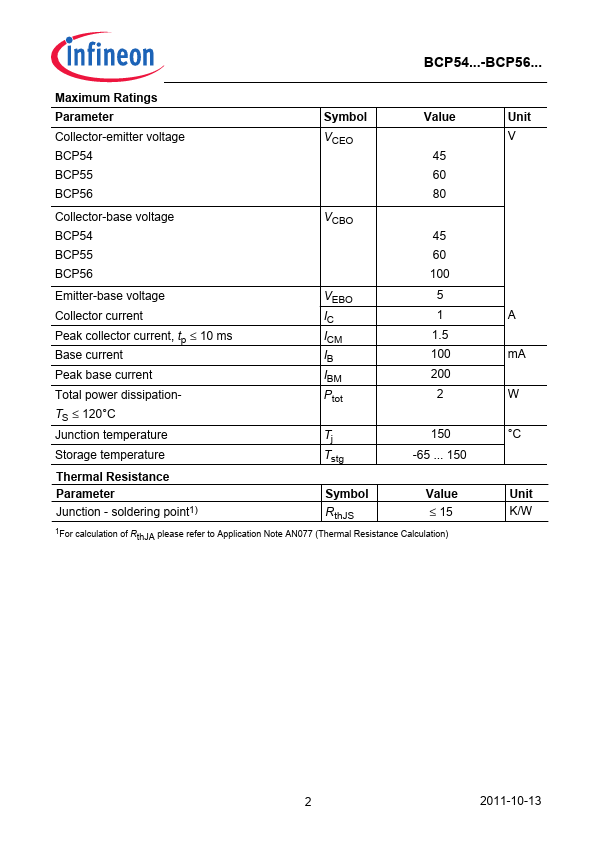

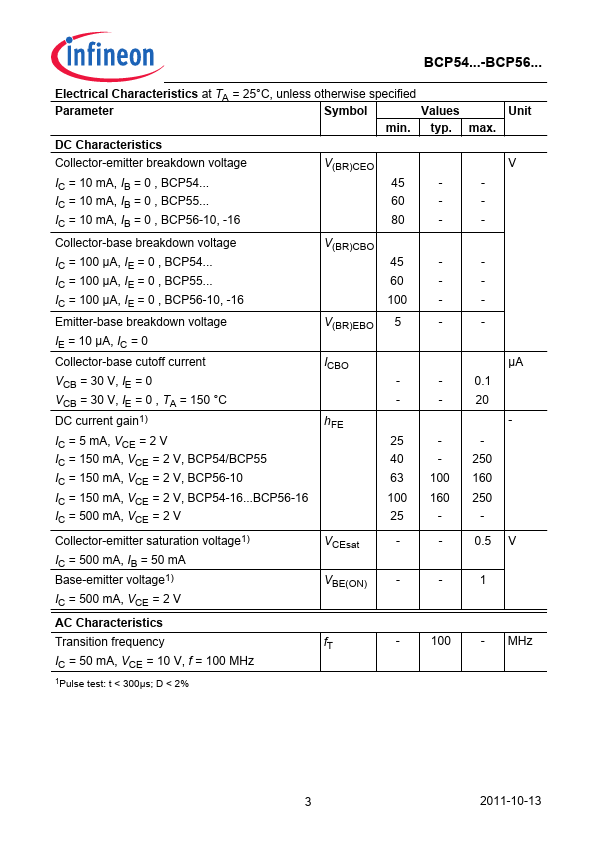

BCP56-16 Datasheet Preview Page 2 BCP56-16 Datasheet Preview Page 3

Datasheet Details

Part number:

BCP56-16, BCP54

Manufacturer:

Infineon ↗

File Size:

821.95 KB

Description:

Npn silicon af transistors.

Note:

This datasheet PDF includes multiple part numbers: BCP56-16, BCP54.
Please refer to the document for exact specifications by model.
