BFQ790 - High Linearity RF Medium Power Amplifier

Infineon

The BFQ790 by Infineon is a High Linearity RF Medium Power Amplifier. Below is the official datasheet preview.

📥 Download Datasheet

BFQ790 High Linearity RF Medium Power Amplifier by Infineon - Datasheet Preview — Official preview page of the **BFQ790** High Linearity RF Medium Power Amplifier datasheet (Infineon).

Datasheet Details

Part number	BFQ790
Manufacturer	Infineon
File Size	483.67 KB
Description	High Linearity RF Medium Power Amplifier
Datasheet	BFQ790-Infineon.pdf
Additional preview pages of the BFQ790 datasheet.

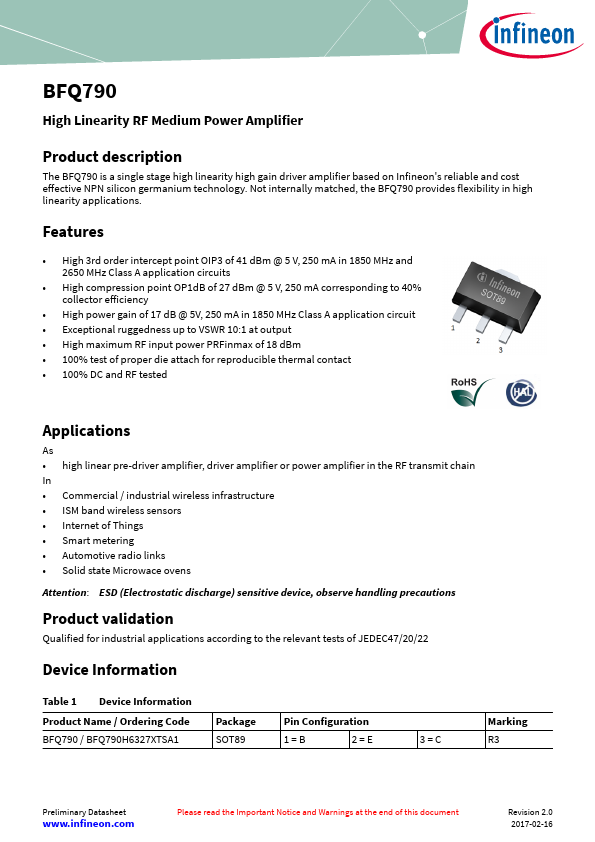

BFQ790 Product details

Description

The BFQ790 is a single stage high linearity high gain driver amplifier based on Infineon's reliable and cost effective NPN silicon germanium technology.

Features

High 3rd order intercept point OIP3 of 41 dBm @ 5 V, 250 mA in 1850 MHz and 2650 MHz Class A.
