BGS12P2L6 - SPDT General purpose Switch

Infineon

BGS12P2L6 Datasheet Preview — Preview of BGS12P2L6 PDF

Datasheet Details

Part number	BGS12P2L6
Manufacturer	Infineon ↗
File Size	853.28 KB
Description	SPDT General purpose Switch
Datasheet	BGS12P2L6-Infineon.pdf

BGS12P2L6 Product details

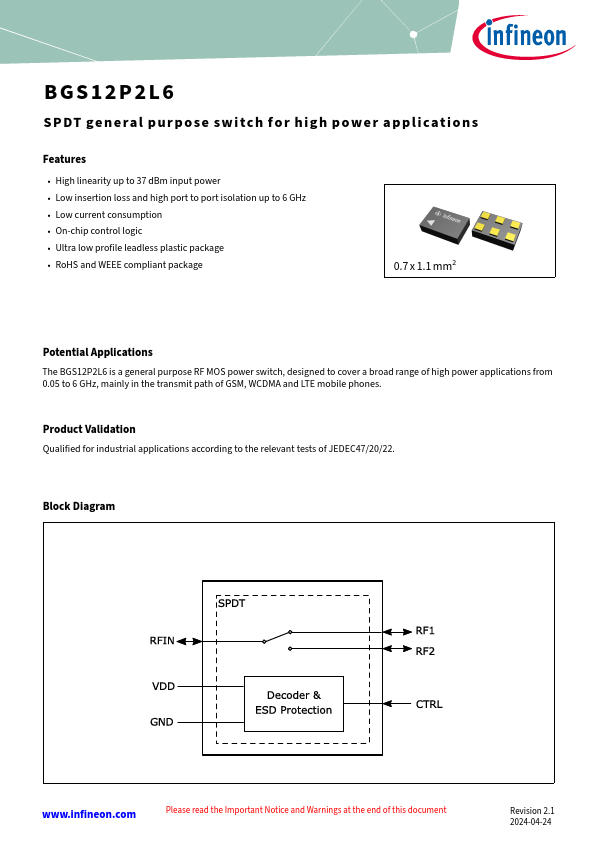

Description

The BGS12P2L6 is a general purpose RF MOS power switch, designed to cover a broad range of high power applications from 0.05 to 6 GHz, mainly in the transmit path of GSM, WCDMA and LTE mobile phones.

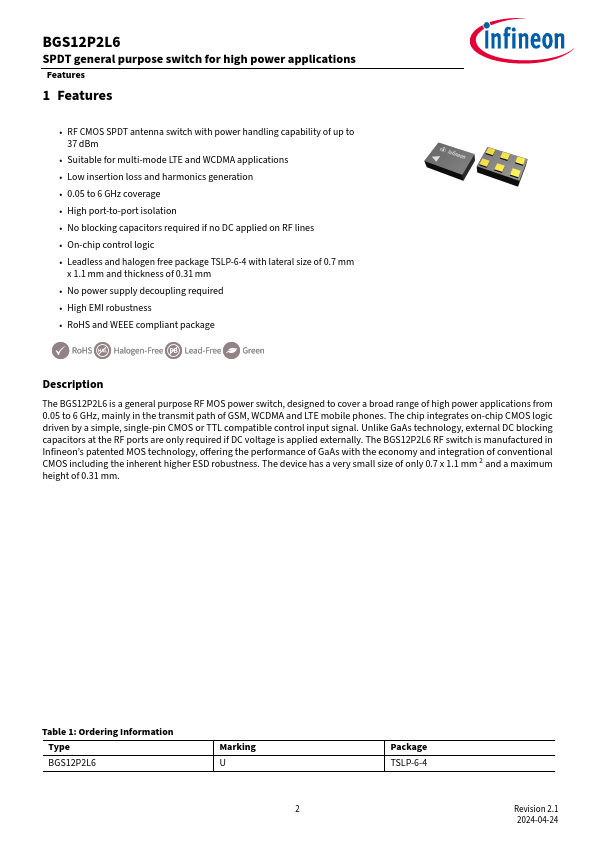

Features

High linearity up to 37 dBm input power.
Low insertion loss and high port to port isolation up to 6 GHz.
Low current consumption.
On-chip control logic.
Ultra low profile leadless plastic package.
RoHS and WEEE compliant package 0.7 x 1.1 mm2 Potential.
