BSC027N10NS5 100V MOSFET

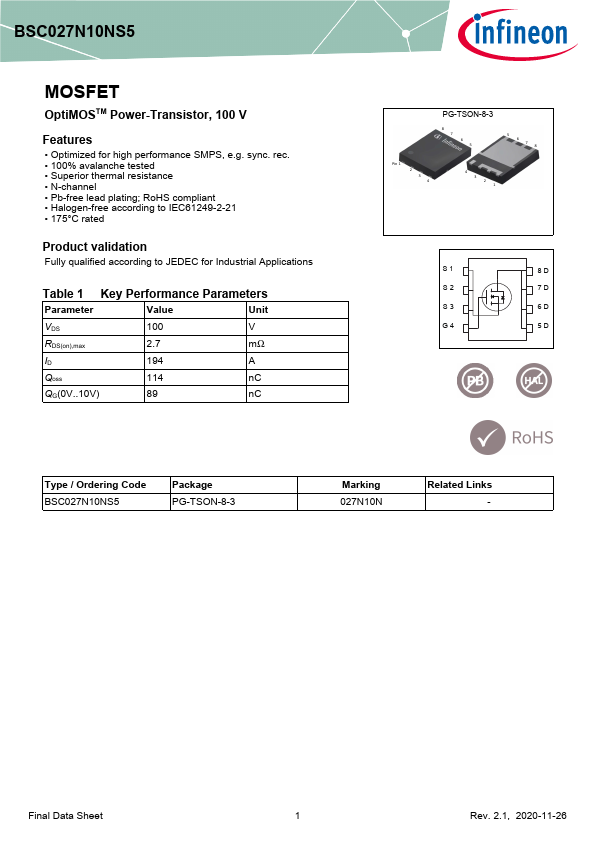

📥 Download Datasheet Datasheet Preview Page 1

Description

BSC027N10NS5 MOSFET OptiMOSTM Power-Transistor, 100 V .

📥 Download Datasheet

Preview of BSC027N10NS5 PDF

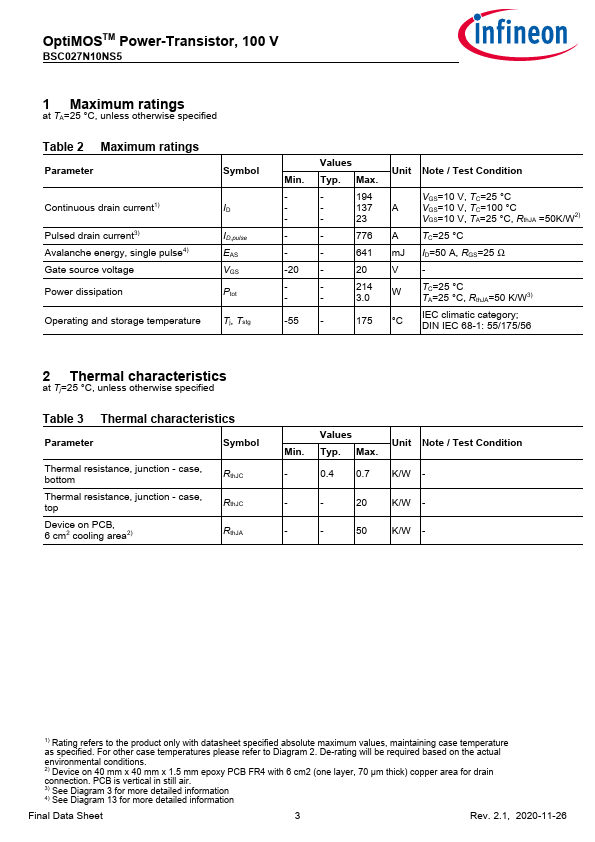

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Optimized for high performance SMPS, e. g. sync. rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21
* 175°C rated Product validation Fully qua

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 2.7 mΩ ID 194 A Qoss 114 nC QG(0V. .10V) 89 nC PG-TSON-8-3 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSC027N10NS5 Package PG-TSON-8-3 Marking 0
