BSC034N10LS5 100V MOSFET

Infineon

Description

BSC034N10LS5 MOSFET OptiMOSTM 5 Power-Transistor, 100 V .

📥 Download Datasheet

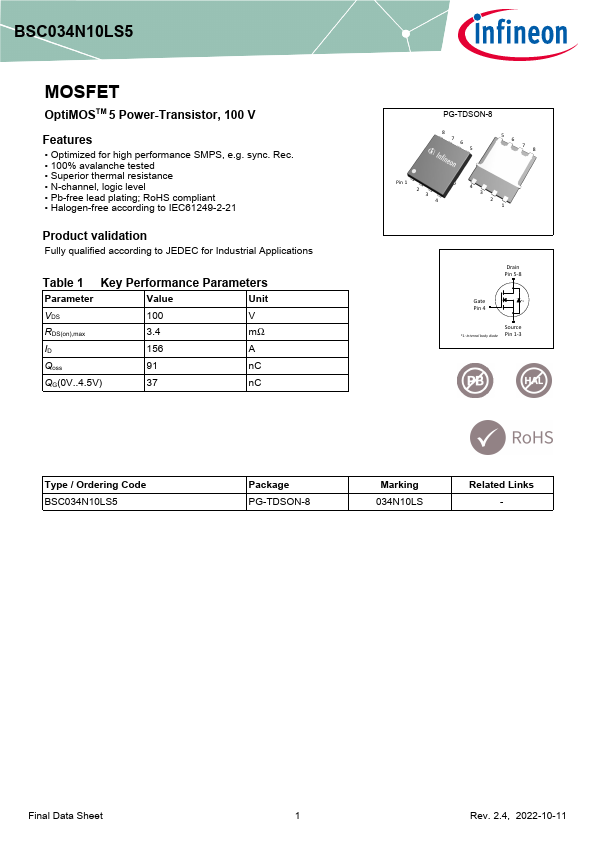

BSC034N10LS5 Datasheet Preview — Preview of BSC034N10LS5 PDF

Datasheet Specifications

Part number: BSC034N10LS5
Manufacturer: Infineon ↗
File Size: 1.41 MB
Datasheet: BSC034N10LS5-Infineon.pdf
Description: 100V MOSFET

Features

* Optimized for high performance SMPS, e. g. sync. Rec.
* 100% avalanche tested
* Superior thermal resistance
* N-channel, logic level
* Pb-free lead plating; RoHS compliant
* Halogen-free according to IEC61249-2-21 Product validation Fully qualified ac

Applications

* Table 1 Key Performance Parameters Parameter Value Unit VDS 100 V RDS(on),max 3.4 mΩ ID 156 A Qoss 91 nC QG(0V. .4.5V) 37 nC PG-TDSON-8 8 7 6 5 5 6 7 8 Pin 1 2 3 4 4 3 2 1 Drain Pin 5-8 Gate
* 1 Pin 4 Source
* 1: Internal body diode Pin 1-3 Type / Ordering Cod

BSC034N10LS5 Distributors
