BSC036NE7NS3G, BSC036NE7NS3 75V MOSFET

Infineon

Description

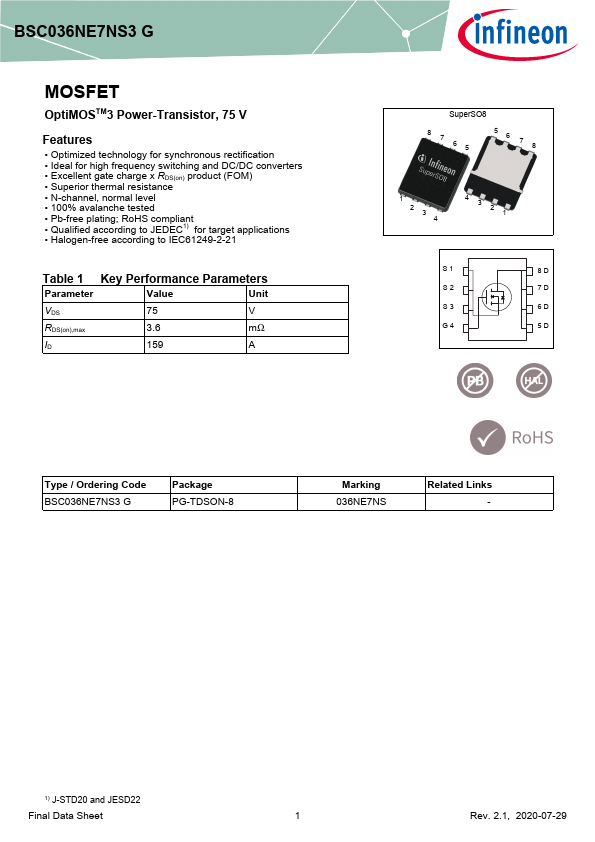

BSC036NE7NS3 G MOSFET OptiMOSTM3 Power-Transistor, 75 V .

📥 Download Datasheet

BSC036NE7NS3G Datasheet Preview — This datasheet PDF includes multiple part numbers: BSC036NE7NS3G, BSC036NE7NS3. Please refer to the document for exact specifications by model.

Datasheet Specifications

Part number: BSC036NE7NS3G, BSC036NE7NS3
Manufacturer: Infineon ↗
File Size: 893.53 KB
Datasheet: BSC036NE7NS3-Infineon.pdf
Description: 75V MOSFET
Note: This datasheet PDF includes multiple part numbers: BSC036NE7NS3G, BSC036NE7NS3.
Please refer to the document for exact specifications by model.

Features

* Optimized technology for synchronous rectification
* Ideal for high frequency switching and DC/DC converters
* Excellent gate charge x RDS(on) product (FOM)
* Superior thermal resistance
* N-channel, normal level
* 100% avalanche tested
* Pb-

Applications

* Halogen-free according to IEC61249-2-21 Table 1 Key Performance Parameters Parameter Value Unit VDS 75 V RDS(on),max 3.6 mΩ ID 159 A SuperSO8 8 7 65 56 78 1 23 4 4321 S1 8D S2 7D S3 6D G4 5D Type / Ordering Code BSC036NE7NS3 G Package PG-TDSON-8 Marking 036
