BTH50060-1LUA Datasheet - Infineon

BTH50060-1LUA smart high-side power switch

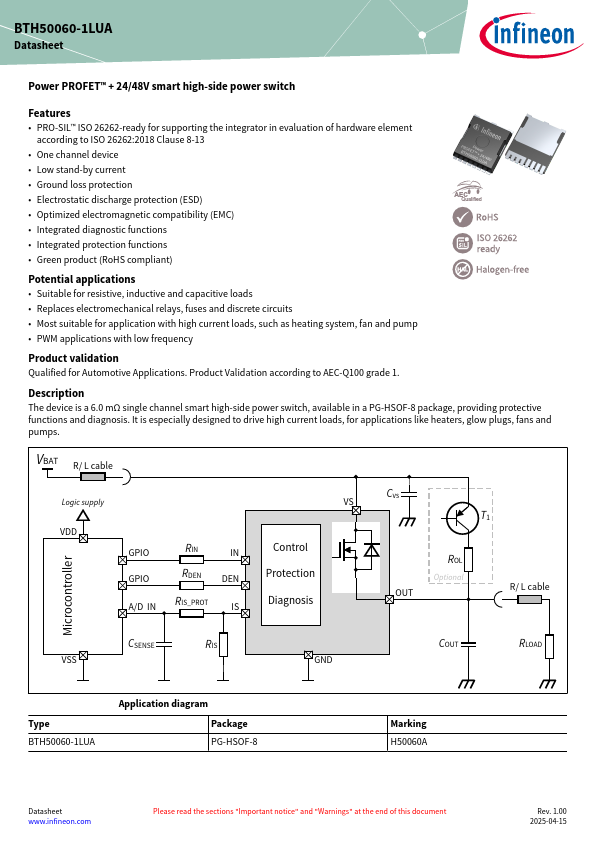

The device is a 6.0 mΩ single channel smart high-side power switch, available in a PG-HSOF-8 package, providing protective functions and diagnosis. It is especially designed to drive high current loads, for applications like heaters, glow plugs, fans and pumps. VBAT R/ L cable Logic supply VS VD.

BTH50060-1LUA Features

* PRO-SIL™ ISO 26262-ready for supporting the integrator in evaluation of hardware element according to ISO 26262:2018 Clause 8-13

* One channel device

* Low stand-by current

* Ground loss protection

* Electrostatic discharge protection (ESD)

* Optimiz
