BTS7040-2EPA Datasheet - Infineon

BTS7040-2EPA Smart High-Side Power Switch

The BTS7040-2EPA is a Smart High-Side Power Switch, providing protection functions and diagnosis. The device is integrated in SMART7 technology. Table 1 Product Summary Parameter Minimum Operating voltage (at switch ON) Minimum Operating voltage (cranking) Maximum Operating voltage Minimum Overvolt.
BTS7040-2EPA PROFET™ +2 12V Smart High-Side Power Switch 2x 40 mΩ Package Marking PG-TSDSO-14 7040-2A 1 Overview Potential Applications Suitable for resistive, inductive and capacitive loads Replaces electromechanical relays, fuses and discrete circuits Driving capability suitable for 3.5 A loads and high inrush current loads such as P27W + R5W lamps or equivalent electronic loads (e.g. LED modules) VBAT ZWIRE Logic Supply Optional CVS RGND CVSGND Option.

BTS7040-2EPA Features

* High-Side Switch with Diagnosis and Embedded Protection

* Part of PROFET™ +2 12V Family

* ReverseON for low power dissipation in Reverse Polarity

* Switch ON capability while Inverse Current condition (InverseON)

* Green Product (RoHS compliant) Protection

BTS7040-2EPA Datasheet (1.77 MB)

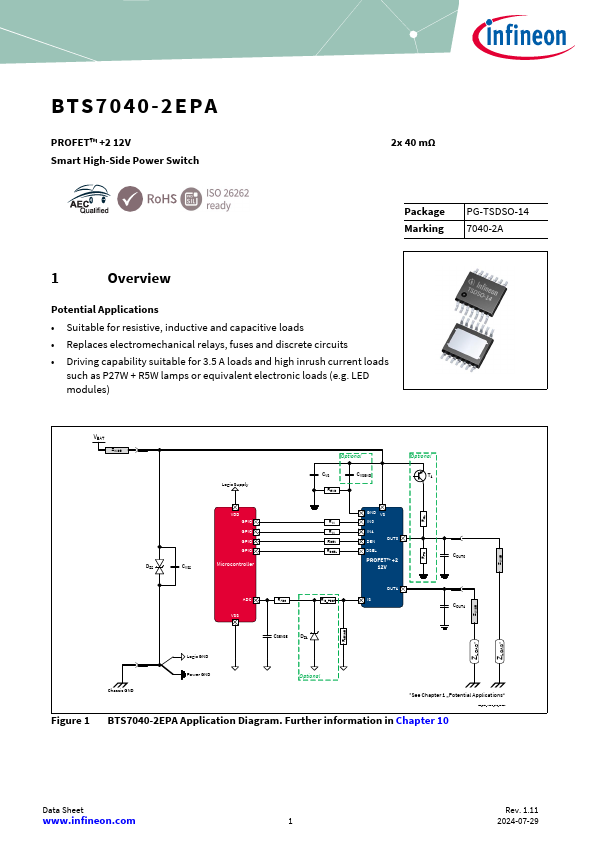

Preview of BTS7040-2EPA PDF

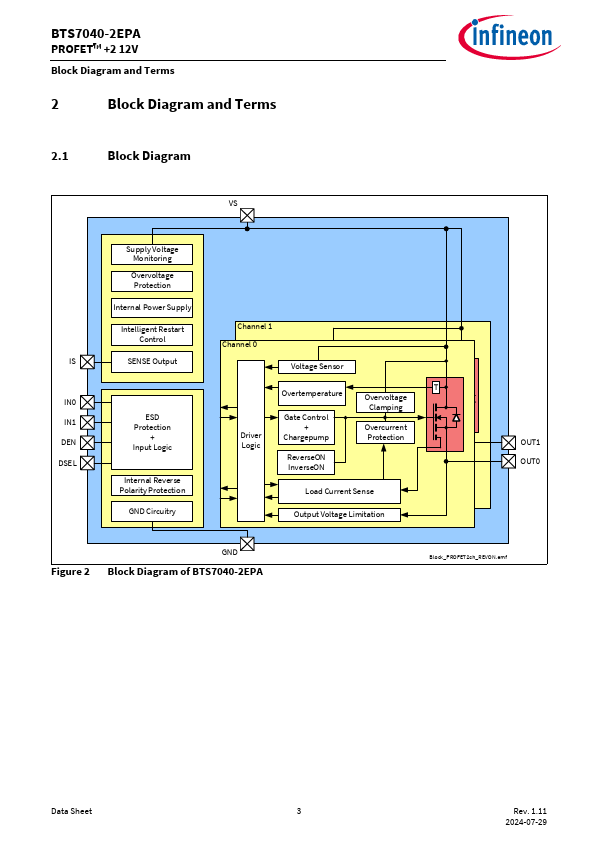

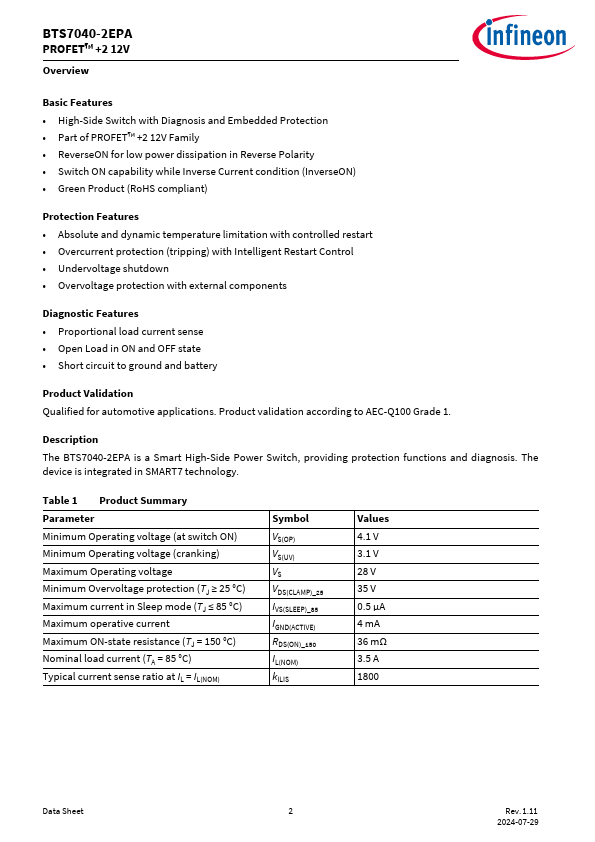

BTS7040-2EPA Datasheet Preview Page 2 BTS7040-2EPA Datasheet Preview Page 3

Datasheet Details

Part number:

BTS7040-2EPA

Manufacturer:

Infineon ↗

File Size:

1.77 MB

Description:

Smart high-side power switch.
