BTT6030-1ERA Datasheet - Infineon

Smart High-Side Power Switch

BTT6030-1ERA Features

* One channel device

* Very low stand-by current

* 3.3 V and 5 V compatible logic inputs

* Electrostatic discharge protection (ESD)

* Optimized electromagnetic compatibility

* Logic ground independent from load ground

* Very low power DMOS leak

BTT6030-1ERA General Description

The BTT6030-1ERA is a 31 mΩ single channel Smart High-Side Power Switch, embedded in a PG-TDSO-14, Exposed Pad package, providing protective functions and diagnosis. The power transistor is built by an N-channel vertical power MOSFET with charge pump. The device is integrated in Smart6 technology. I.

BTT6030-1ERA Datasheet (824.82 KB)

Preview of BTT6030-1ERA PDF

Datasheet Details

Part number:

BTT6030-1ERA

Manufacturer:

Infineon ↗

File Size:

824.82 KB

Description:

Smart high-side power switch.

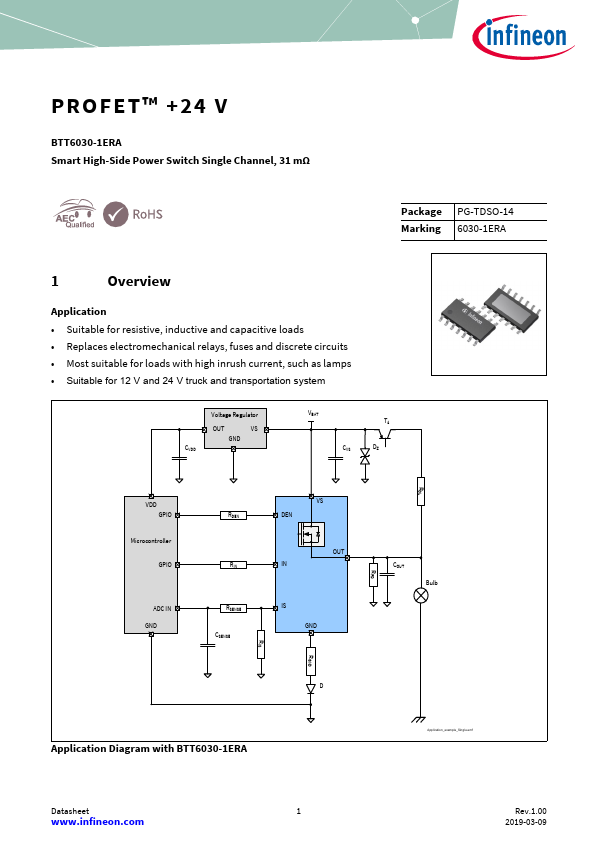

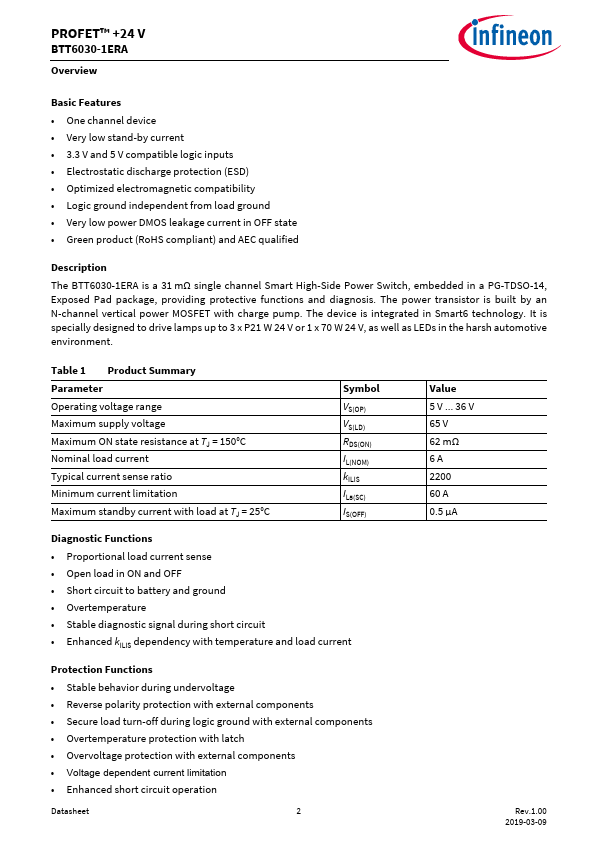

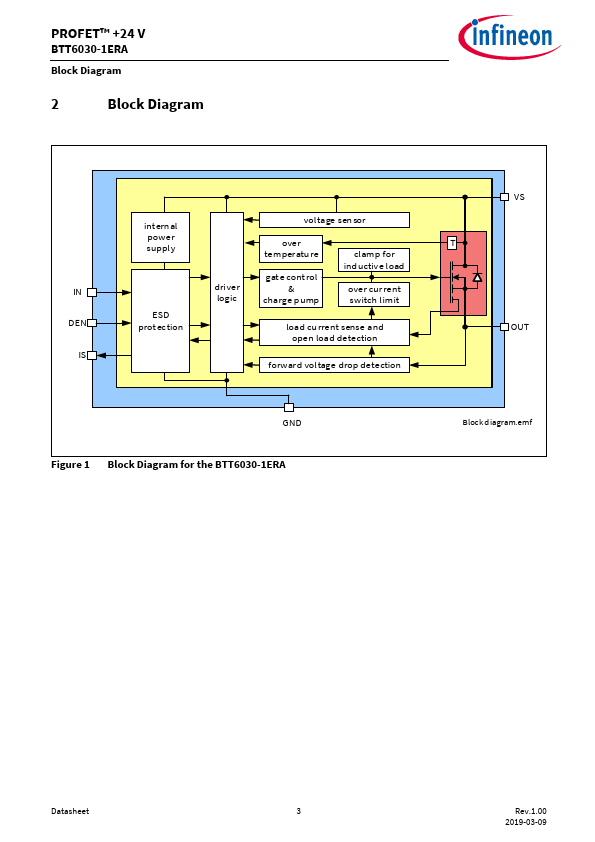

PROFET™ +24 V BTT6030-1ERA Smart High-Side Power Switch Single Channel, 31 mΩ Package PG-TDSO-14 Marking 6030-1ERA 1 Overview Application .
