CY8C6144LQI-S4F12 Datasheet - Infineon

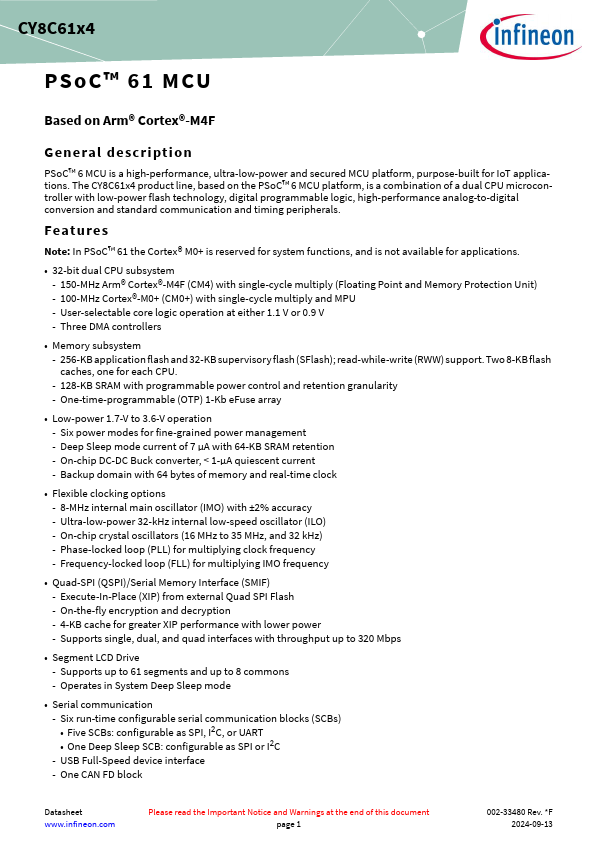

CY8C6144LQI-S4F12 ultra-low-power and secured MCU

PSoC™ 6 MCU is a high-performance, ultra-low-power and secured MCU platform, purpose-built for IoT applications. The CY8C61x4 product line, based on the PSoC™ 6 MCU platform, is a combination of a dual CPU microcontroller with low-power flash technology, digital programmable logic, high-performance .

CY8C6144LQI-S4F12 Features

* Note: In PSoC™ 61 the Cortex® M0+ is reserved for system functions, and is not available for applications.

* 32-bit dual CPU subsystem - 150-MHz Arm® Cortex®-M4F (CM4) with single-cycle multiply (Floating Point and Memory Protection Unit) - 100-MHz Cortex®-M0+ (CM0+) with single-cycle multip

CY8C6144LQI-S4F12 Datasheet (1.18 MB)
