CY8C6144AZI-S4F92-Infineon.pdf
Datasheet Details
Part number:
CY8C6144LQI-S4F92, CY8C6144AZI-S4F92
Manufacturer:
File Size:
1.18 MB
Description:
Ultra-low-power and secured mcu.
Note:
This datasheet PDF includes multiple part numbers: CY8C6144LQI-S4F92, CY8C6144AZI-S4F92.
Please refer to the document for exact specifications by model.

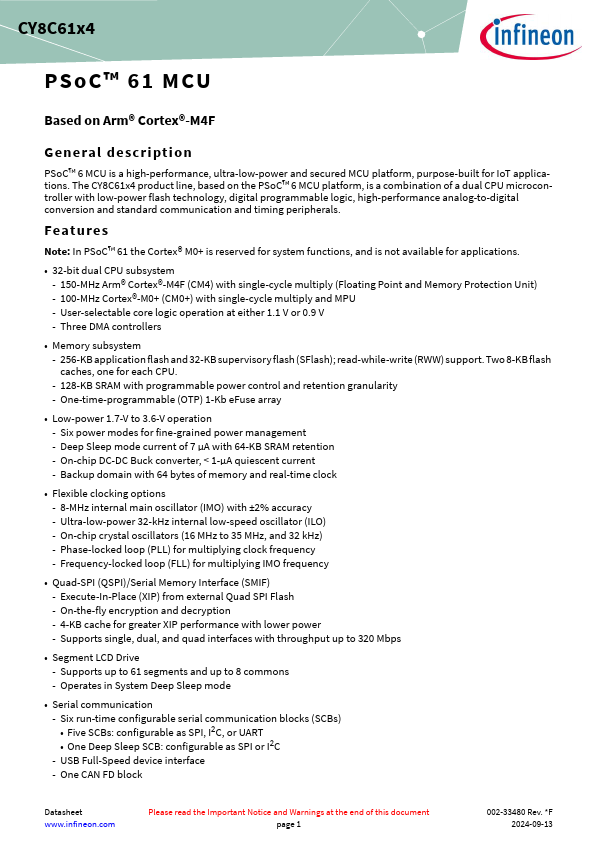

CY8C6144LQI-S4F92, CY8C6144AZI-S4F92, ultra-low-power and secured MCU
PSoC™ 6 MCU is a high-performance, ultra-low-power and secured MCU platform, purpose-built for IoT applications.
The CY8C61x4 product line, based on the PSoC™ 6 MCU platform, is a combination of a dual CPU microcontroller with low-power flash technology, digital programmable logic, high-performance

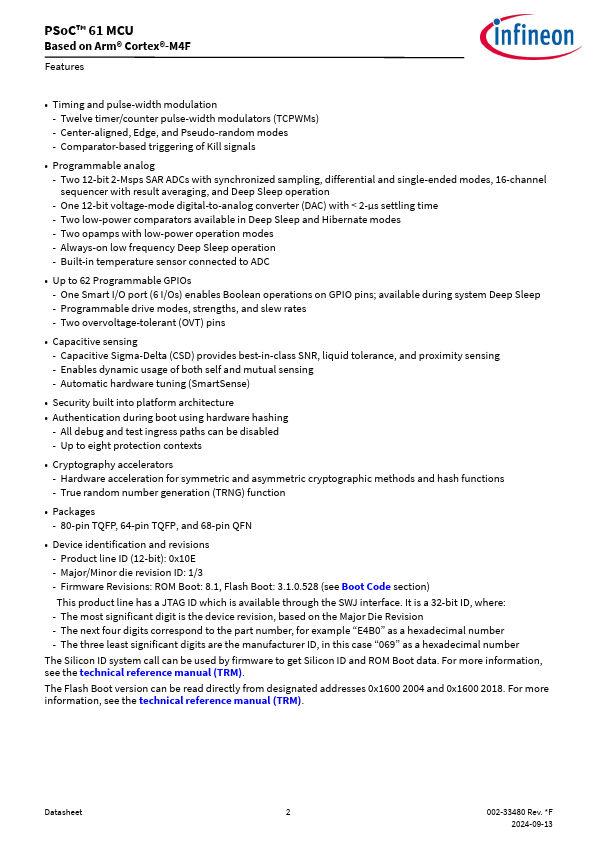

CY8C6144LQI-S4F92 Features
* Note: In PSoC™ 61 the Cortex® M0+ is reserved for system functions, and is not available for applications.
* 32-bit dual CPU subsystem - 150-MHz Arm® Cortex®-M4F (CM4) with single-cycle multiply (Floating Point and Memory Protection Unit) - 100-MHz Cortex®-M0+ (CM0+) with single-cycle multip
