D2700U - Fast Hard Drive Diode

Datasheet Summary

Features

  • Full blocking capability 50/60Hz over a wide temperature range.
  • High DC blocking stability.
  • High surge current capability.
  • High case non-rupture current.
  • Soft turn-off behavior at high turn-off di/dt Typische Anwendungen.
  • Hochspannungsgleichstrom Übertragung HGÜ.
  • Mittelspannungsumrichter.
  • Freilaufdiode für IGCT - Applikationen.
  • Freilaufdiode für IGBT - Applikationen.
  • Pulsed Power - Applikationen Typical.

📥 Download Datasheet

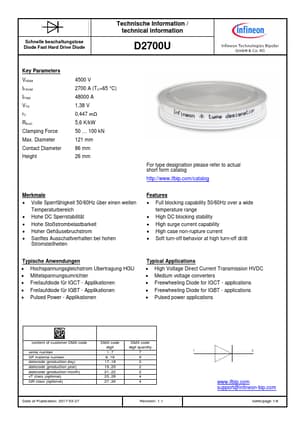

Datasheet preview – D2700U

Datasheet Details

Part number D2700U
Manufacturer Infineon
File Size 331.79 KB
Description Fast Hard Drive Diode
Datasheet download datasheet D2700U Datasheet
Additional preview pages of the D2700U datasheet.

📁 Similar Datasheet

  • D27128A - Advanced 128K UV Erasable PROM (Intel)
  • D27128C - Inductors (NEC)
  • D27128D - UPD27128D (NEC)
  • D2716 - (M2716) 16K UV Erasable PROM (Intel)
  • D2732A - 32K UV Erasable PROM (Intel)
  • D27512 - 512K Production and UV EPROM (Intel)
  • D2764A - 64K (8K x 8) UV Erasable PROMs (Intel)
  • D27C010 - 1M CHMOS EPROM (Intel)
  • D27C2001D15 - UPD27C2001D15 (NEC)
  • D27C240 - 4M CHMOS EPROM (Intel)
Other Datasheets by Infineon

    Full PDF Text Transcription

    Click to expand full text
    Schnelle beschaltungslose Diode Fast Hard Drive Diode Technische Information / technical information D2700U Key Parameters VRRM IFAVM IFSM VT0 rT RthJC Clamping Force Max. Diameter Contact Diameter Height 4500 V 2700 A (TC=65 °C) 34857000A0 A(TC=55°C) 1,38 V 0,447 mΩ 5,6 K/kW 50 … 100 kN 121 mm 86 mm 26 mm For type designation please refer to actual short form catalog http://www.ifbip.
