D4600U Datasheet - Infineon

D4600U - Fast Hard Drive Diode

Schnelle beschaltungslose Diode Fast Hard Drive Diode Technische Information / technical information D4600U Key Parameters VRRM IFAVM IFSM VT0 rT RthJC Clamping Force Max.

Diameter Contact Diameter Height 4500 V 4450 A (TC=65 °C) 38057000A0 A(TC=55°C) 1,25 V 0,30 mΩ 3,3 K/kW 50 … 130 kN 172 mm 115 mm 26 mm For type designation please refer to actual short form catalog http://www.ifbip.com/catalog Merkmale Volle Sperrfähigkeit 50/60Hz über einen weiten Temperaturbereich Hohe DC S

D4600U Features

* Full blocking capability 50/60Hz over a wide temperature range

* High DC blocking stability

* High surge current capability

* High case non-rupture current

* Soft turn-off behavior at high turn-off di/dt Typische Anwendungen

* Hochspannungsgleichstrom Übertragung HGÜ

D4600U-Infineon.pdf

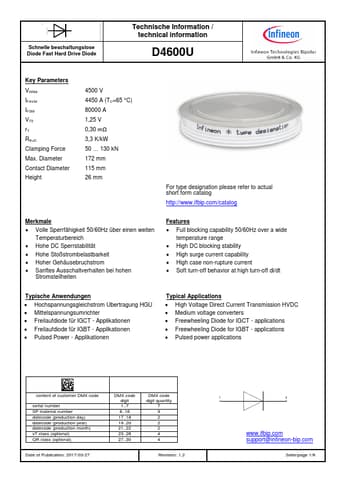

Preview of D4600U PDF
D4600U Datasheet Preview Page 2 D4600U Datasheet Preview Page 3

Datasheet Details

Part number:

D4600U

Manufacturer:

Infineon ↗

File Size:

328.09 KB

Description:

Fast hard drive diode.
