DF80R12W2H3F_B11, IGBT

DF80R12W2H3F_B11 EasyPACK Modul mit schnellem Trench/Feldstopp High-Speed 3 IGBT und SiC Diode und PressFIT / NTC EasyPACK module with fast Trench/Fie.

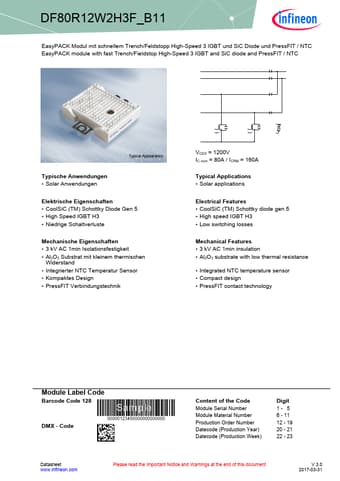

datasheet Preview Page 1 from Datasheet4u.com

DF80R12W2H3F_B11-Infineon.pdf

DF80R12W2H3F_B11 Datasheet Preview — Preview of DF80R12W2H3F_B11 PDF

Datasheet Details

Part number:

DF80R12W2H3F_B11

Manufacturer:

Infineon ↗

File Size:

614.72 KB

Description:

IGBT

Features

* CoolSiC (TM) Schottky diode gen 5
* High speed IGBT H3
* Low switching losses Mechanical Features
* 3 kV AC 1min insulation
* Al2O3 substrate with low thermal resistance
* Integrated NTC temperature sensor
* Compact design
* PressFIT
