FD450R12KE4P Datasheet - Infineon

FD450R12KE4P-Infineon.pdf

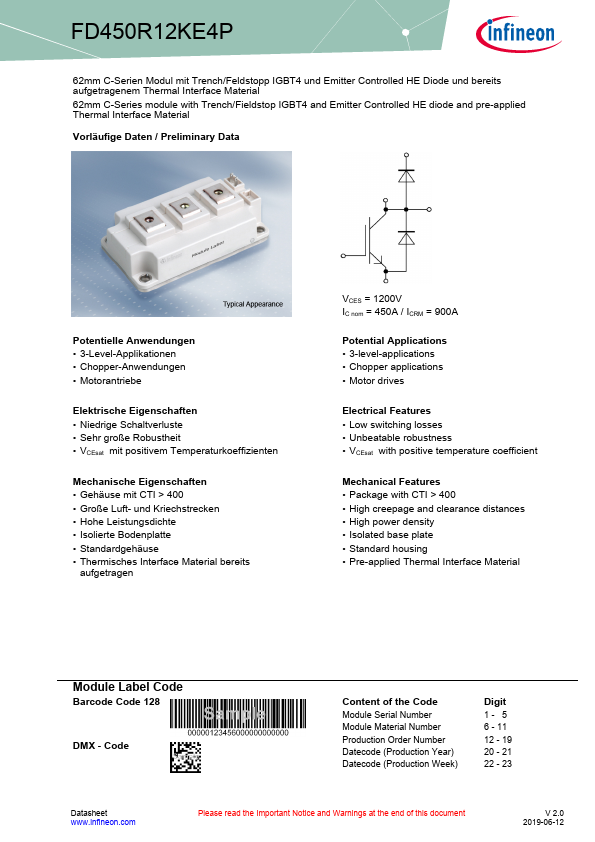

Preview of FD450R12KE4P PDF

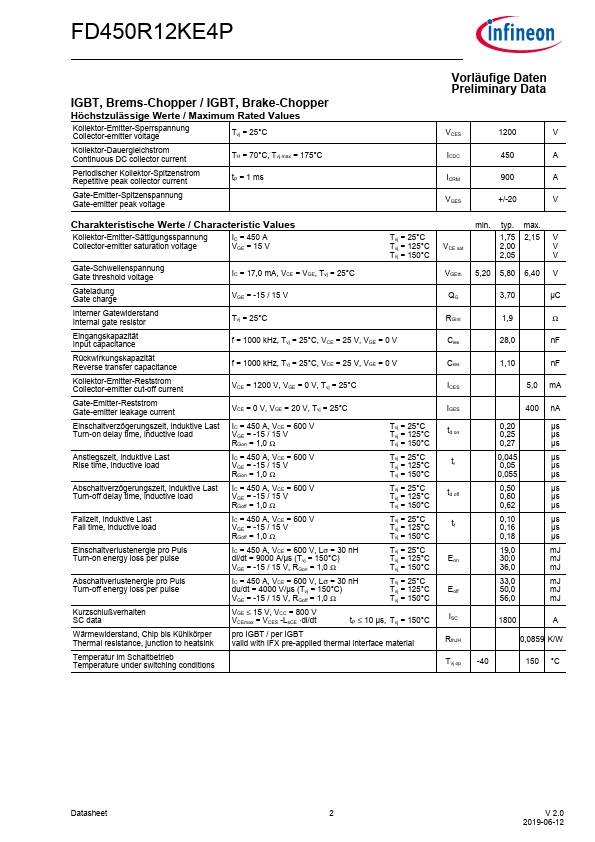

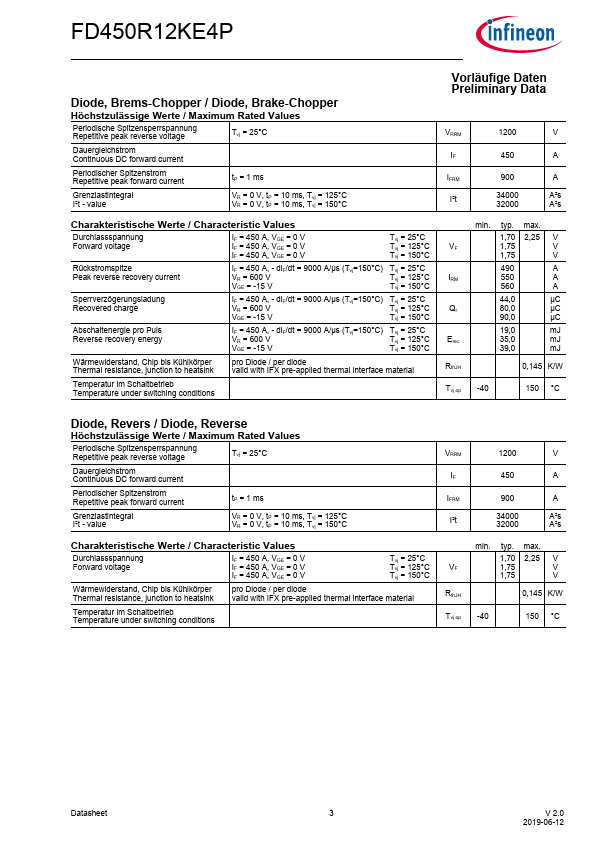

FD450R12KE4P Datasheet Preview Page 2 FD450R12KE4P Datasheet Preview Page 3

Datasheet Details

Part number:

FD450R12KE4P

Manufacturer:

Infineon ↗

File Size:

614.41 KB

Description:

Igbt.

FD450R12KE4P, IGBT

FD450R12KE4P 62mm C-Serien Modul mit Trench/Feldstopp IGBT4 und Emitter Controlled HE Diode und bereits aufgetragenem Thermal Interface Material 62mm C-Series module with Trench/Fieldstop IGBT4 and Emitter Controlled HE diode and pre-applied Thermal Interface Material Vorläufige Daten / Preliminary Data Potentielle Anwendungen 3-Level-Applikationen Chopper-Anwendungen Motorantriebe Elektrische Eigenschaften Niedrige Schaltverluste Sehr große Rob

FD450R12KE4P Features

* Low switching losses

* Unbeatable robustness

* VCEsat with positive temperature coefficient Mechanical Features

* Package with CTI > 400

* High creepage and clearance distances

* High power density

* Isolated base plate

* Standard ho
