FP35R12N2T7_B11 EconoPIM 2 module

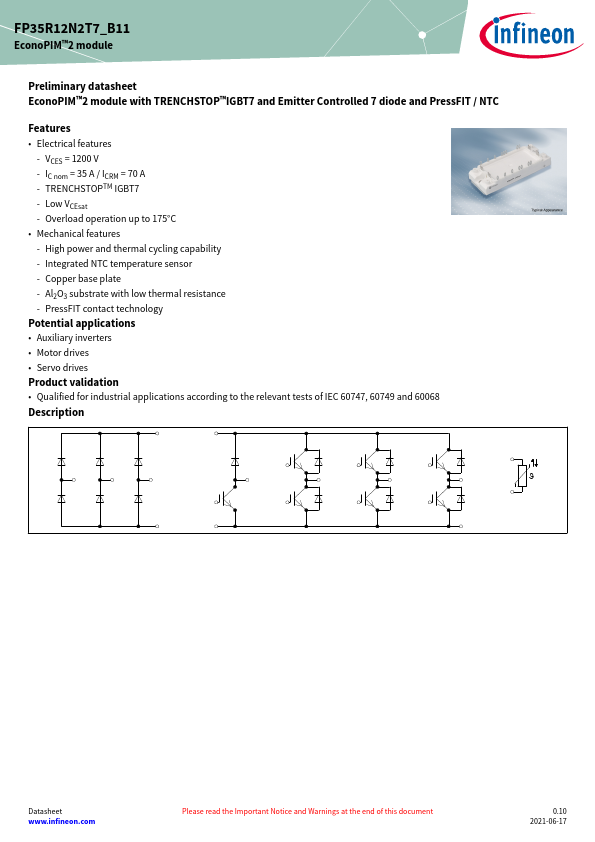

📥 Download Datasheet Datasheet Preview Page 1

Description

FP35R12N2T7_B11 EconoPIM™2 module Preliminary datasheet EconoPIM™2 module with TRENCHSTOP™IGBT7 and Emitter Controlled 7 diode and PressFIT / NTC Feat.
J Datasheet www.

📥 Download Datasheet

Preview of FP35R12N2T7_B11 PDF

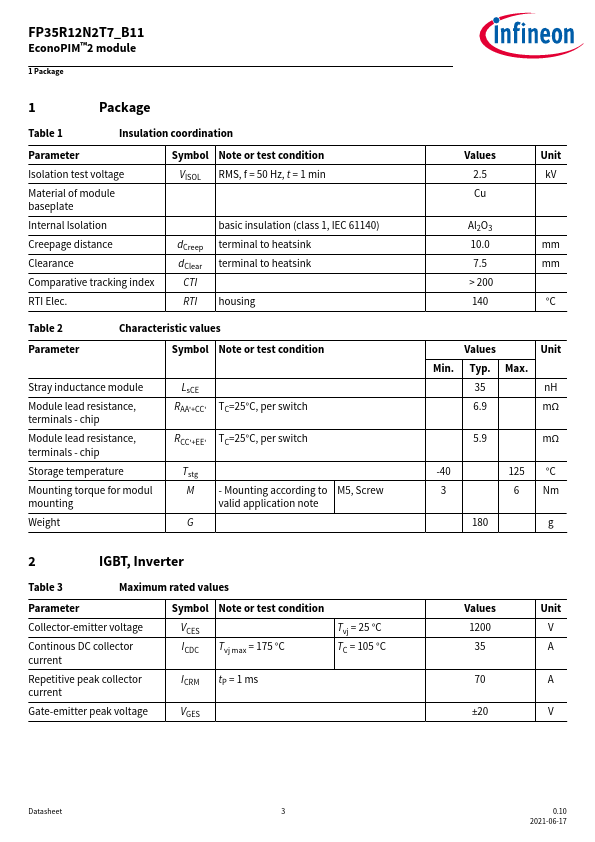

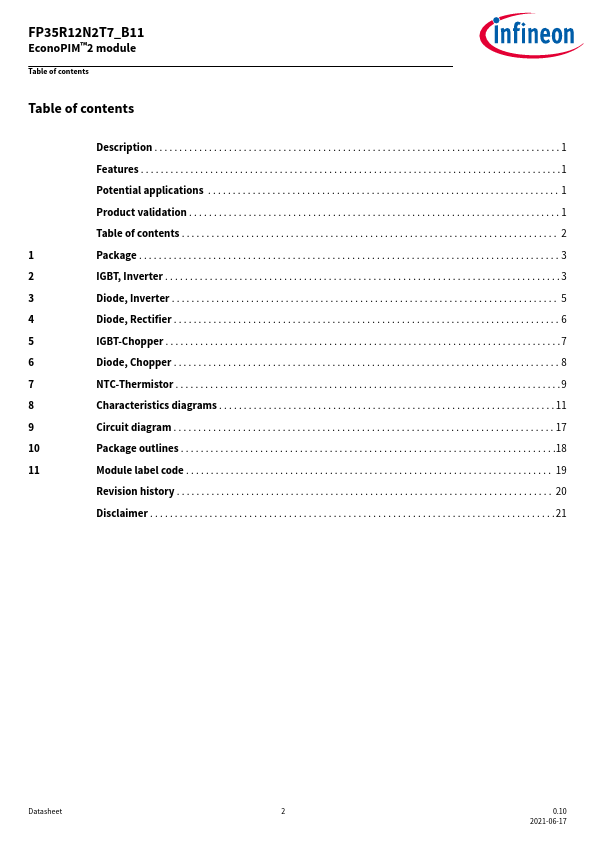

datasheet Preview Page 2 datasheet Preview Page 3

Features

* Electrical features - VCES = 1200 V - IC nom = 35 A / ICRM = 70 A - TRENCHSTOPTM IGBT7 - Low VCEsat - Overload operation up to 175°C
* Mechanical features - High power and thermal cycling capability - Integrated NTC temperature sensor - Copper base plate - Al2O3 substrate with low

Applications

* Auxiliary inverters
* Motor drives
* Servo drives Product validation

FP35R12N2T7_B11 Distributors
