ICE2A280 - Off-Line SMPS Current Mode Controller with integrated 650V/800V CoolMOS

Product Overview

Infineon

Part number	ICE2A280
Manufacturer	Infineon
File Size	1.46 MB
Description	Off-Line SMPS Current Mode Controller with integrated 650V/800V CoolMOS
Datasheet	ICE2A280 Datasheet
Note	This datasheet PDF includes multiple part numbers: ICE2A280, ICE. Please refer to the document for exact specifications by model.

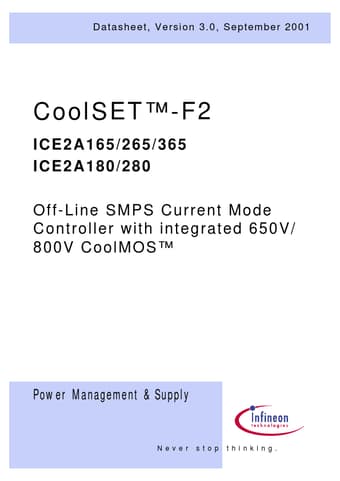

Additional preview pages of the ICE2A280 datasheet.

and charts stated herein.

In standby mode frequency reduction is used to lower the power consumption and support a stable output voltage in this mode. The frequency reduction is limited to 21.5 kHz to avoid audible noise. In case of failure modes like open loop, overvoltage or overload due to short circuit the device switches in Auto Restart Mode which is controlled by the internal protection unit. By means of the internal precise peak current limitation the dimension of the transformer and the secondary diode can be lo.
